Digital residual current circuit-breaker, 40A, 4p, 300 mA, type G/B
- 0509-3951
- |
- 167897
1
piece
in stock
Don’t have an account? Create one
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

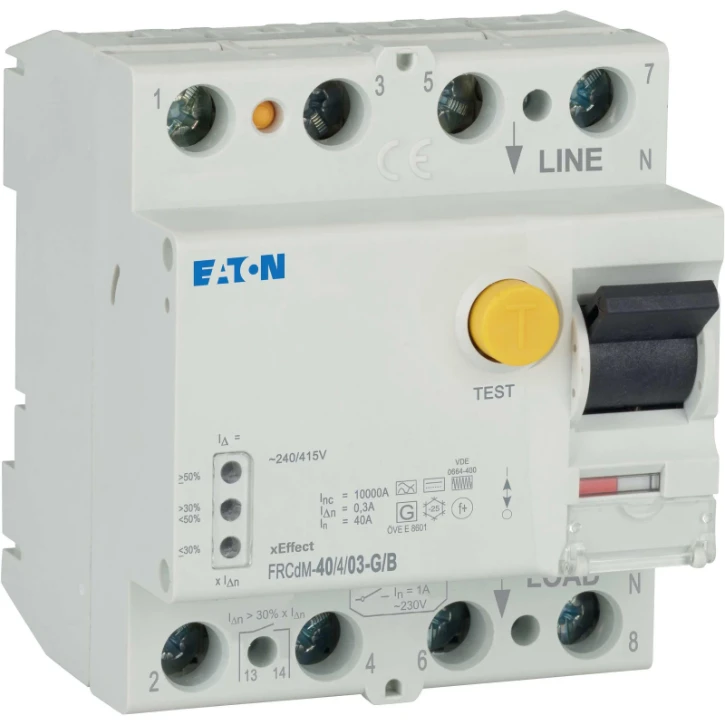

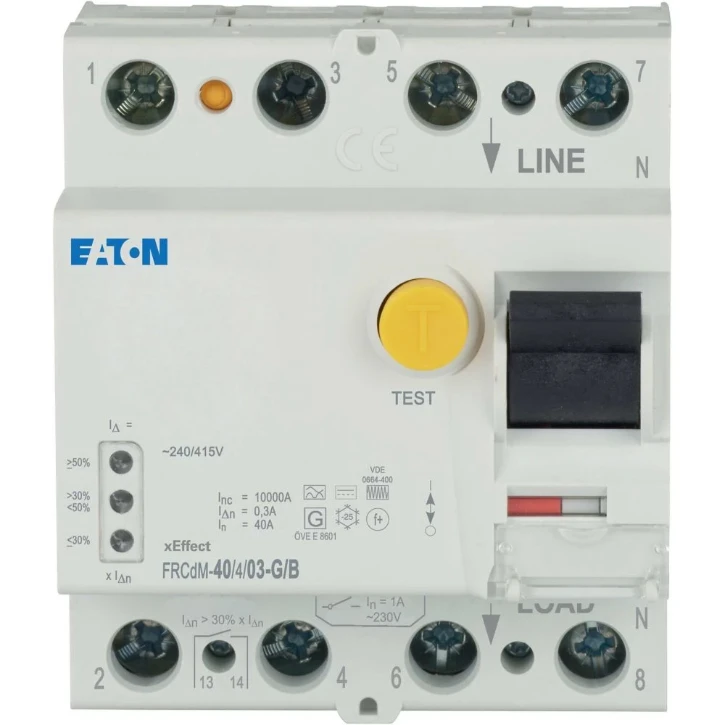

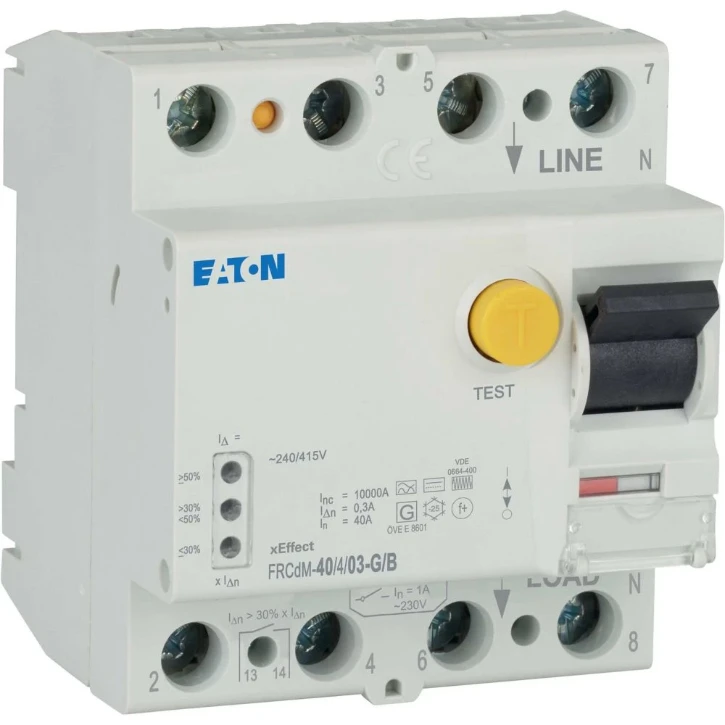

Digital residual current circuit-breaker, 40A, 4p, 300 mA, type G/B
Digital residual current circuit-breaker, 40A, 4p, 300 mA, type G/B
Ordercode YESSS
0509-3951
Product code
167897
EAN code
04015081644735
Product group
Residual current circuit breaker (RCCB)
Brand
Eaton
Serie
xEffect
Type
FRCDM-40/4/03-G/B
Product description
Residual current circuit-breaker FRCdM, 4 pole, Rated current In: 40 A, Rated short-circuit strength Icn: 10 with back-up fuse kA, Rated fault current IΔN: 0.3 A, Switchgear for industrial and advanced commercial applications
Product specifications
Number of poles
4
Rated current
40 A
Rated fault current
0.3 A
Leakage current type
B
Rated voltage
456 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Width in number of modular spacings
4
Selective protection
Yes
Short-circuit breaking capacity (Icw)
10 kA

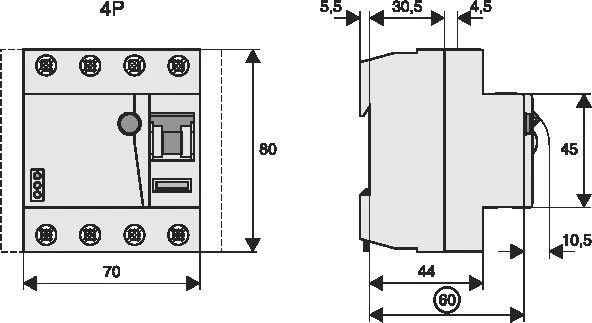

Built-in depth
70.5 mm
Rated short-circuit breaking capacity according to EN 60898
0.5 kA
Additional equipment possible
Yes
Rated short-circuit breaking capacity according to IEC 60947-2
0 kA
Mounting method
DIN rail
With interlocking device
Yes
Frequency
50 Hz
Surge current capacity
3 kA
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 50 °C
Short-time delayed tripping
No
Pollution degree
2
Connectable conductor cross section multi-wired
1.5 - 16 mm²
Connectable conductor cross section solid-core
1.5 - 35 mm²
Voltage type
AC
Explosion-proof
No
RAL-number (similar)
7035
