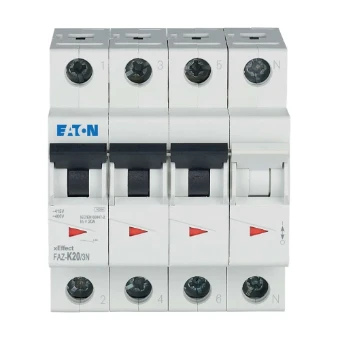

Miniature circuit breaker (MCB) Eaton xEffect
Add to selection
General information
Ordercode YESSS
0509-3432
Product code
279014
EAN code
4015082790141
Product group
Miniature circuit breaker (MCB)
Brand
Eaton
Serie
xEffect
Type
FAZ-K20/3N
Leitungsschutzschalter, 20 A, 3p+N, Charakteristik: K
Leitungsschutzschalter, 20 A, 3p+N, Charakteristik: K
Product description
Miniature circuit breaker (MCB), FAZ, 3-pole+N, tripping characteristic: K, rated current In: 20 A, Switchgear for industrial and advanced commercial applications
Product specifications
Release characteristic
K
Rated current
20 A
Number of poles (total)
2
Number of protected poles
1
Width in number of modular spacings
1
Rated voltage
230 V
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
4.5 kA
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
4.5 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
0 kA
Built-in depth
70.5 mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
0 kA
Additional equipment possible
Yes
Frequency
50 - 60 Hz
Voltage type
AC
Current limiting class
3
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
2
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 75 °C
Connectable conductor cross section multi-wired
1 - 25 mm²
Connectable conductor cross section solid-core
1 - 25 mm²
Flush-mounted installation
No
Explosion-proof
No
Power loss
12 W
