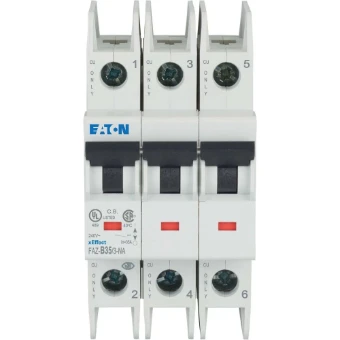

Miniature circuit breaker (MCB) Eaton xEffect
Add to selection
General information
Ordercode YESSS
6029-7979
Product code
132729
EAN code
4015081296781
Product group
Miniature circuit breaker (MCB)
Brand
Eaton
Serie
xEffect
Type
FAZ-B35/3-NA
Leitungsschutzschalter, 35 A, 3p, Charakteristik: B
Leitungsschutzschalter, 35 A, 3p, Charakteristik: B
Product description
Miniature circuit breaker (MCB), FAZ-NA, 3-pole, tripping characteristic: B, rated current In: 35 A, Switchgear for export to North America (UL-listed)
Product specifications
Release characteristic
B
Rated current
35 A
Number of poles (total)
3
Number of protected poles
3
Width in number of modular spacings
3
Rated voltage
415 V
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
0 kA
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15 kA
Built-in depth
70.5 mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Additional equipment possible
Yes
Frequency
50 - 60 Hz
Voltage type
AC
Current limiting class
3
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
2
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 75 °C
Connectable conductor cross section multi-wired
1 - 25 mm²
Connectable conductor cross section solid-core
1 - 25 mm²
Flush-mounted installation
No
Explosion-proof
No
Power loss
5.7 W
