General information

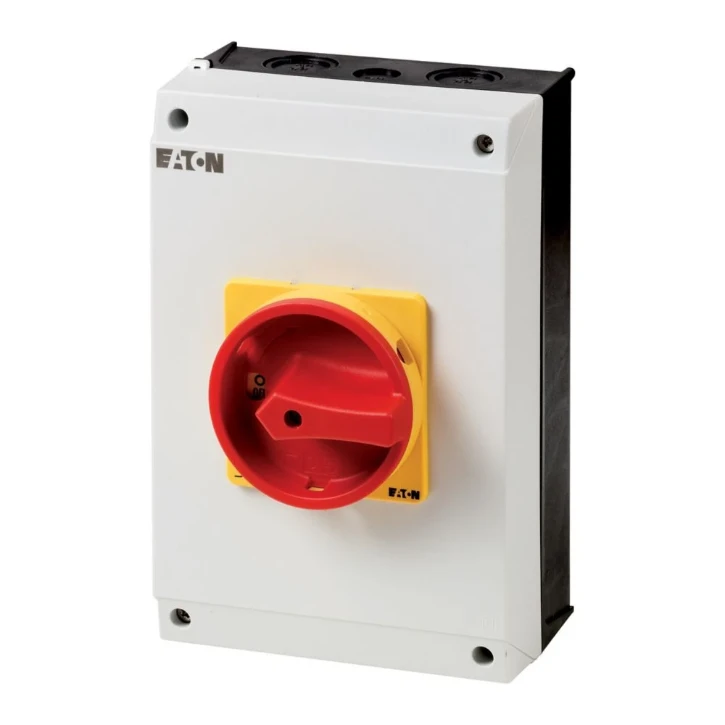

Main switch, T5B, 63 A, surface mounting, 4 contact unit(s),
Main switch, T5B, 63 A, surface mounting, 4 contact unit(s), 6 pole, 2
Ordercode YESSS
0508-9103
Product code
223023
EAN code
04015082230234
Product group
Switch disconnector (AC)
Brand
Eaton
Serie
T nokkenschakelaar
Type
T5B-4-15700/I4/SVB
Product description
Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5B, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 6 pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Product specifications
Rated permanent current Iu
63 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
2
Version as reversing switch
No
Rated operation power at AC-23, 400 V
30 kW
Number of switches
1
Number of poles
6
Version as main switch
Yes
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
Yes
Version as safety switch
No
Rated permanent current at AC-21, 400 V
63 A
Version as emergency stop installation
Yes
Rated permanent current at AC-23, 400 V
63 A
Rated operation power at AC-3, 400 V
22 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
1.3 kA
Switching power at 400 V
30 kW
Conditioned rated short-circuit current Iq
2 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Door coupling rotary drive

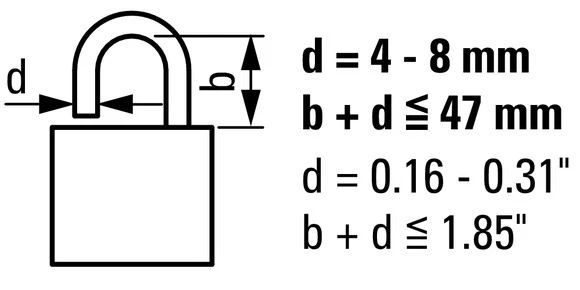

Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Red
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Width
160 mm
Height
204 mm
Depth
240 mm
