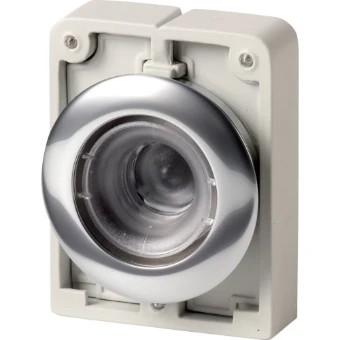

Front element for push button Eaton RMQ M30
Add to selection
General information
Ordercode YESSS
0508-5927
Product code
182922
EAN code
4015081778492
Product group
Front element for push button
Brand
Eaton
Serie
RMQ M30
Type
M30C-FD-X
Drucktaste, RMQ-Titan, tastend, Frontring Metall
Drucktaste, RMQ-Titan, tastend, Frontring Metall
Product description
Pushbutton, Product range: RMQ-Titan, Single unit, momentary, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 x 3 mm, Standards: IEC/EN 60947, VDE 0660
Product specifications
Number of command positions
1
Hole diameter
30.5 mm
Degree of protection (IP), front side
IP67/IP69K
Switching function latching
No
With front ring
Yes
Material front ring
Metal
Colour button
Without button plate
Construction type lens
Round
Width opening
0 mm
With protective cover
No
Height opening
0 mm
Type of button
Flat
Labelled
No
Suitable for lighting
No
Spring-return
Yes
Colour front ring
Titanium
Degree of protection (NEMA), front side
4X, 13
Product information
