General information

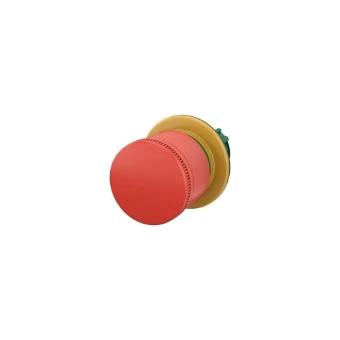

Emergency stop/emergency switching off pushbutton, RMQ-Titan, Mushroom
Emergency stop/emergency switching off pushbutton, RMQ-Titan, Mushroom
Ordercode YESSS
6029-7235
Product code
197543
EAN code
04015081942596
Product group
Front element for mushroom push-button
Brand
Eaton
Serie
RMQ M30
Type
M30-PV30
Product description
Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 30 mm, Illumination: Non-illuminated, Pull-to-release function, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Base: yellow, Degree of Protection: IP65, IP66, IP69, Connection to SmartWire-DT: no, Front dimensions: 35, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Standards: EN 50581:2012, EN 60947-5-1:2017, EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017, EN ISO 13850:2015, 2006/42/EC Machinery Directive
Product specifications
Colour button
Red
Degree of protection (IP)
IP66
Switching function latching
Yes
Spring-return
No
Suitable for emergency stop
Yes
Construction type lens
Round
Diameter cap
30 mm
Hole diameter
30.5 mm
Degree of protection (NEMA)
4X
Width opening
0 mm
Height opening
0 mm
Type of button
High
Suitable for lighting
No
With front ring
No
Material front ring
Other
Colour front ring
Other
Unlocking method
Pull-release
With lighting
No
Supply voltage lamp
0 V
