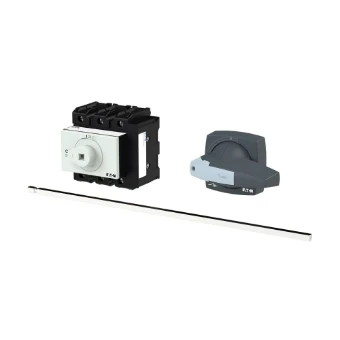

Switch disconnector Eaton P lastschakelaar
Add to selection
General information
Ordercode YESSS
0508-7334
Product code
172815
EAN code
4015081693993
Product group
Switch disconnector
Brand
Eaton
Serie
P lastschakelaar
Type
P3-63/M4/K2-PG/HI11
Hauptschalter, P3, 63 A, Zwischenbau, 3-polig, 1 Schließer, 1 Öffner,
Hauptschalter, P3, 63 A, Zwischenbau, 3-polig, 1 Schließer, 1 Öffner, HALT-Funktion, mit schwarzem Drehgriff und Sperrkranz (K-Serie), abschließbar in
Product description
Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: STOP function, With black rotary handle and locking ring, Notes: With metal shaft for a control panel depth of 400 mm, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Product specifications
Rated permanent current Iu
63 A
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Version as reversing switch
No
Rated operation power at AC-23, 400 V
30 kW
Number of switches
1
Number of poles
3
Version as main switch
Yes
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
Yes
Version as safety switch
No
Rated permanent current at AC-21, 400 V
63 A
Version as emergency stop installation
No
Rated permanent current at AC-23, 400 V
63 A
Rated operation power at AC-3, 400 V
30 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
1.26 kA
Switching power at 400 V
30 kW
Conditioned rated short-circuit current Iq
100 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
Yes
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Grey
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Width
100 mm
Height
84 mm
Depth
340 mm
