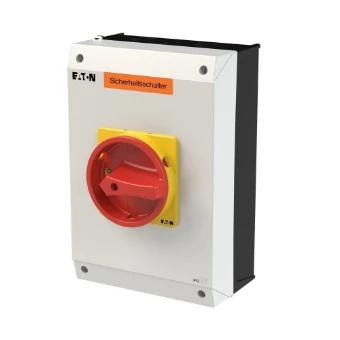

Switch disconnector Eaton P lastschakelaar
Add to selection
General information
Ordercode YESSS
0508-7321
Product code
207365
EAN code
4015082073657
Product group
Switch disconnector
Brand
Eaton
Serie
P lastschakelaar
Type
P3-63/I4-SI/N
Sicherheitsschalter, P3, 63 A, 3-polig + N, NOT-AUS-Funktion, mit rotem
Sicherheitsschalter, P3, 63 A, 3-polig + N, NOT-AUS-Funktion, mit rotem Drehgriff und gelbem Sperrkranz, abschließbar in 0-Stellung mit Deckelverriege
Product description
Safety switch, Product range: safety switch, Part group reference: P3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: with warning label „safety switch”, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Product specifications
Rated permanent current Iu
63 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Rated operation power at AC-23, 400 V
30 kW
Number of switches
1
Number of poles
4
Version as main switch
No
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
No
Version as safety switch
Yes
Rated permanent current at AC-21, 400 V
63 A
Version as emergency stop installation
Yes
Rated permanent current at AC-23, 400 V
63 A
Rated operation power at AC-3, 400 V
30 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
1.26 kA
Switching power at 400 V
30 kW
Conditioned rated short-circuit current Iq
100 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Black
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Width
160 mm
Height
180 mm
Depth
139 mm
