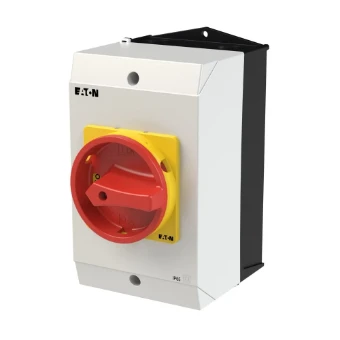

Switch disconnector Eaton P lastschakelaar
Add to selection
General information
Ordercode YESSS
0508-7289
Product code
207340
EAN code
4015082073404
Product group
Switch disconnector
Brand
Eaton
Serie
P lastschakelaar
Type
P3-63/I3/SVB/HI11
EIN-AUS-Schalter, P3, 63 A, Aufbau, 3-polig, 1 Schließer, 1 Öffner,
EIN-AUS-Schalter, P3, 63 A, Aufbau, 3-polig, 1 Schließer, 1 Öffner, NOT-AUS-Funktion, mit rotem Drehgriff und gelbem Sperrkranz, abschließbar in 0-Ste
Product description
Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/63A, degree of protection Front IP65, handle red with yellow locking collar lockable with 3 padlocks, switch-disconnectors P3 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, rear mounting, IVS service distribution board mounting
Product specifications
Rated permanent current Iu
63 A
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Version as reversing switch
No
Rated operation power at AC-23, 400 V
37 kW
Number of switches
1
Number of poles
3
Version as main switch
Yes
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
Yes
Version as safety switch
No
Rated permanent current at AC-21, 400 V
63 A
Version as emergency stop installation
Yes
Rated permanent current at AC-23, 400 V
63 A
Rated operation power at AC-3, 400 V
30 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
1.26 kA
Switching power at 400 V
30 kW
Conditioned rated short-circuit current Iq
100 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Other
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Red
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Width
120 mm
Height
222 mm
Depth
160 mm
