Switch disconnector (AC) Eaton P lastschakelaar
Add to selection
General information
Ordercode YESSS
6094-0248
Product code
199906
EAN code
4015082953218
Product group
Switch disconnector (AC)
Brand
Eaton
Serie
P lastschakelaar
Type
P1-40/I2
EIN-AUS-Schalter, 3-polig, 40 A, Aufbau
EIN-AUS-Schalter, 3-polig, 40 A, Aufbau
Product description

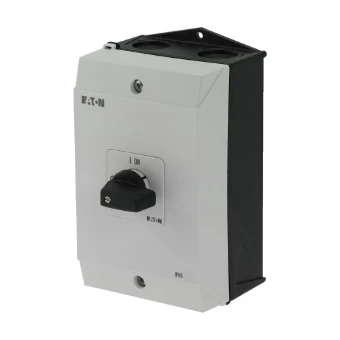

On-Off switch, P1, Rated uninterrupted current (Iu): 40 A, Fitted with: Black thumb grip and front plate, Auxiliary contact, Mounting method: Surface mounting, Number of poles: Three-pole, Degree of Protection: IP65
Product specifications
Rated permanent current Iu
40 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Rated operation power at AC-23, 400 V
22 kW
Number of switches
1
Number of poles
3
Version as main switch
No
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
No
Version as safety switch
No
Rated permanent current at AC-21, 400 V
40 A
Version as emergency stop installation
No
Rated permanent current at AC-23, 400 V
40 A
Rated operation power at AC-3, 400 V
15 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
0.64 kA
Switching power at 400 V
22 kW
Conditioned rated short-circuit current Iq
80 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Short rotary handle
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Black
With pre-assembled cabling
No
Width
100 mm
Height
180 mm
Depth
107 mm
