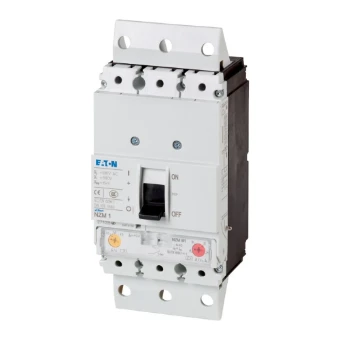

Motor protection circuit-breaker Eaton MCCB's & Accessoires
Add to selection
General information
Ordercode YESSS
0508-1481
Product code
112723
EAN code
4015081122639
Product group
Motor protection circuit-breaker
Brand
Eaton
Serie
MCCB's & Accessoires
Type
NZMB1-M100-SVE
Leistungsschalter, 3p, 100A, Steckeinsatz
Leistungsschalter, 3p, 100A, Steckeinsatz
Product description
Series NZM..-M circuit-breakers cover all application cases with just four compact sizes and are suitable for the IEC market. Modular function groups always make mounting flexible. With thermomagnetic releases for motor protection. Notes: With phase-failure sensitivity, tripping class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2 circuit-breakers fulfill all requirements of the switching category AC-3.
Product specifications
Adjustment range undelayed short-circuit release
800 - 1250 A
Rated operating voltage
440 - 440 V
With thermal protection
Yes
Device construction
Built-in device plug-in technique
Degree of protection (IP)
IP20
Overload release current setting
80 - 100 A
Rated short-circuit breaking capacity lcu at 400 V, AC
18.5 kA
Phase failure sensitive
Yes
Switch off technique
Thermomagnetic
Rated permanent current Iu
100 A
Type of electrical connection of main circuit
Other
Rated operation power at AC-3, 230 V
30 kW
Type of control element
Rocker lever
Rated operation power at AC-3, 400 V
55 kW
With integrated auxiliary switch
No
With integrated under voltage release
No
Number of poles
3
Height
201 mm
Width
95 mm
Depth
90 mm
Power loss
23.9 W
