Ventilator (enclosure/cabinet) Eaton Filter fans
Add to selection
General information
Ordercode YESSS
0507-2548
Product code
167288
EAN code
4015081637911
Product group
Ventilator (enclosure/cabinet)
Brand
Eaton
Serie
Filter fans
Type
E-FAN2
Filterlüfter, Luftmenge freiblasend 61/70 m³/h, Ausschnitt 125 x 125 mm,
Filterlüfter, Luftmenge freiblasend 61/70 m³/h, Ausschnitt 125 x 125 mm, Schutzart IP54
Product description

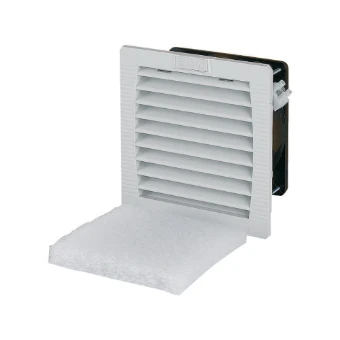

Filter fan for system ventilation; easy installation; filter pads can be easily changed; degree of protection IP54; airflow direction can be easily changed; plain bearing; UL94 V-0 self-extinguishing plastic; fuse with 6 A; air delivery rate, free-blowing 61/70 m³/h; cutout [HxW] 125mm x 125mm; dimensions 145mm x 145mm
Product specifications
Number of fans
1
Operating voltage AC 50 Hz
230 - 240 V
Roof ventilator
No
Suitable for 19 inch rack mounting
Yes
Degree of protection (IP)
IP54
Operating voltage AC 60 Hz
230 - 240 V
Operating voltage DC
0 - 0 V
Voltage type
AC
Suitable for wall built-in
Yes
Built as slide-in ventilator
No
Air circulator
Yes
With protective cover
No
With filter
Yes
Volume flow, freeblowing
70 m³/h
Rated power
19 W
EMC-version
No
Noise emission
44 dB(A)
Mounting method
Snap mounting
Degree of protection (NEMA)
12
Colour
Grey
Width
145 mm
RAL-number
7035
Height
145 mm
Depth
70 mm
