Device for monitoring of safety-related circuits Eaton ESR
Add to selection
General information
Ordercode YESSS
0539-4761
Product code
191796
EAN code
4015081923151
Product group
Device for monitoring of safety-related circuits
Brand
Eaton
Serie
ESR
Type
ESR5-NO-31-UC
Sicherheitsrelais zur NOT-HALT-/Schutztür-/Lichtgitter-Überwachung mit Weitbereichseingang, 24V-230 VDC/AC
Sicherheitsrelais zur NOT-HALT-/Schutztür-/Lichtgitter-Überwachung mit Weitbereichseingang, 24V-230 VDC/AC
Product description
Safety relay for controlled stop, safety doors and light curtains up to SILCL 3, cat. 4, PL e, 1- or 2-channel operation, automatic or manual, monitored start, 3 enable paths, 1 signaling current path, US = 24 ... 230V AC/DC, pluggable screw terminal
Product specifications
Number of outputs, safety related, undelayed, with contact
0
Suitable for monitoring of position switches
No
Number of outputs, safety related, delayed, with contact
0
Rail mounting possible
Yes
Model
Basic device
Suitable for monitoring of emergency-stop circuits
Yes
Suitable for monitoring of valves
No
Suitable for monitoring of optoelectronic protection equipment
Yes
Suitable for monitoring of tactile sensors
No
Suitable for monitoring of magnetic switches
Yes
Suitable for monitoring of proximity switches
No
Type of electric connection
Screw connection
With detachable clamps
Yes
Evaluation inputs
One- and two-channel
With start input
Yes
Release-delay
0 - 0 s
With muting function
No
With feedback circuit
Yes
Number of outputs, safety related, undelayed, semiconductors
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
0
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, semiconductors
0
Type of safety according to IEC 61496-1
None
Stop category according to IEC 60204
0
SIL according to IEC 61508
3
Performance level according to EN ISO 13849-1
Level e
With approval for BG BIA
No
With approval according to UL
Yes

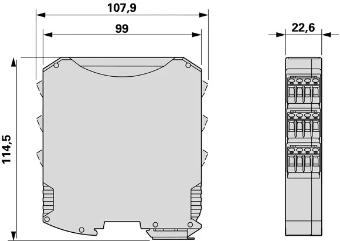

Width
22.5 mm
Height
113 mm
Depth
114.5 mm
Mit TÜV-Zulassung
No
Power consumption
2.9 W
Voltage type of supply voltage
AC/DC
Supply voltage AC 50 Hz
24 - 230 V
Supply voltage AC 60 Hz
24 - 230 V
Supply voltage DC
24 - 230 V
Type of control voltage 1
AC/DC
Control voltage 1
24 - 230 V
Type of control voltage 2
AC/DC
Control voltage 2
24 - 230 V
Voltage type (operating voltage)
AC/DC
Operating voltage at AC 50 Hz
24 - 230 V
Operating voltage at AC 60 Hz
24 - 230 V
Operating voltage at DC
24 - 230 V
Rated switch current
5 A
