(Fill) level monitoring relay Eaton EMR
Add to selection
General information
Ordercode YESSS
6029-7390
Product code
184758
EAN code
4015081787944
Product group
(Fill) level monitoring relay
Brand
Eaton
Serie
EMR
Type
EMR6-N100-N-1
Niveaurelais, 110 - 130 V AC, 50/60 Hz, 220 -
Niveaurelais, 110 - 130 V AC, 50/60 Hz, 220 - 240 V AC, 50/60 Hz, 5 - 100 kΩ
Product description
Level monitoring relays, Product range: EMR Measuring and monitoring relays, Monitoring of: Fill level of conductive liquids, Mixture ratio of conductive liquids, adjustable sensitivity range: 5 - 100 kΩ, Supply voltage: 110 - 130 V AC, 50/60 Hz, 220 - 240 V AC, 50/60 Hz, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: IEC/EN 60255-6, EN 61557, UL, CSA, GL, DNV, RMRS, EAC, RCM
Product specifications
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Min. adjustable operate delay time
0 s
Type of electric connection
Screw connection
With detachable clamps
No
Number of inputs for electrodes
3
Max. permitted operate delay time
0 s
Min. adjustable off-delay time
0 s
Max. permitted off-delay time
0 s
Response value sensitivity adjustable
Yes
Number of contacts as change-over contact
1
Physical measurement principle
Conductive
Cascadable
No

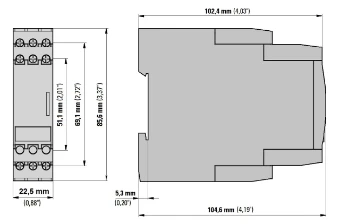

Width
22.5 mm
Height
85.6 mm
Depth
103.7 mm
Voltage type of supply voltage
AC
Supply voltage AC 50 Hz
110 - 240 V
Supply voltage AC 60 Hz
110 - 240 V
Supply voltage DC
110 - 240 V
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
110 - 240 V
Operating voltage at AC 60 Hz
110 - 240 V
Rated switch current
4 A
