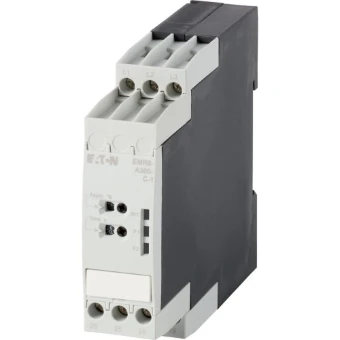

Phase monitoring relay Eaton EMR
Add to selection
General information
Ordercode YESSS
6029-7369
Product code
184761
EAN code
4015081787975
Product group
Phase monitoring relay
Brand
Eaton
Serie
EMR
Type
EMR6-A300-C-1
Asymmetriewächter, 160 - 300 V AC, 50/60 Hz
Asymmetriewächter, 160 - 300 V AC, 50/60 Hz
Product description
Phase imbalance monitoring relays, Product range: EMR Measuring and monitoring relays, Power supply from the measuring circuit, On delay: None = 0 or adjustable from 0.1 to 30 s, Imbalance threshold values adjustable 2 - 25 % of mean value of phase voltages, Monitoring voltage per phase: UN= 160 - 300 V AC, 50/60 Hz V AC, Monitoring of: Phase sequence, Phase failure, Imbalance, Adjustable threshold values: Imbalance, Supply voltage: 160 - 300 V AC, 50/60 Hz, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: IEC/EN 60255-6, IEC255-6, UL, CE
Product specifications
Phase sequence monitoring
Yes
Phase failure detection
Yes
Function under voltage detection
No
Function over voltage detection
No
Voltage measuring range
160 - 300 V
Type of electric connection
Screw connection
With detachable clamps
No
Phase imbalance monitoring
Yes
Min. adjustable delay-on energization time
0.1 s
Max. permitted delay-on energization time
30 s
Min. adjustable off-delay time
0 s
Max. permitted off-delay time
0 s
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Width
22.5 mm
Height
85.6 mm
Depth
103.7 mm
External power supply required
No
Voltage type of supply voltage
AC
Supply voltage AC 50 Hz
160 - 300 V
Supply voltage AC 60 Hz
160 - 300 V
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
160 - 300 V
Operating voltage at AC 60 Hz
160 - 300 V
Rated switch current
4 A
