Combination of contactors Eaton DIUL
Add to selection
General information
Ordercode YESSS
0509-1972
Product code
107026
EAN code
4015081067947
Product group
Combination of contactors
Brand
Eaton
Serie
DIUL
Type
DIULM32/21(RDC24)
Wendeschützkombination, 380 V 400 V: 15 kW, 24 V DC,
Wendeschützkombination, 380 V 400 V: 15 kW, 24 V DC, Gleichstrombetätigung
Product description
Reversing contactor combination, Application: Contactor combinations for starting motors with two directions of rotation, Accessories: DIUL reversing combinations, Utilization category: NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Rated operational current AC-3 380 V 400 V: Ie= 32 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 10 kW, 380 V 400 V: P= 15 kW, 660 V 690 V: P= 17 kW, Actuating voltage: 24 V DC, Voltage AC/DC: DC operation, Notes: Also suitable for motors with efficiency class IE3. , IE3-ready devices are identified by the logo on their packaging.
Product specifications
Function
Reversing contactor
Rated control supply voltage at AC 50 Hz
0 - 0 V
Voltage type for actuating
DC
Rated operation power at AC-3, 400 V
15 kW
Rated operation current Ie at AC-3, 400 V
32 A
Rated control supply voltage at AC 60 Hz
0 - 0 V
Rated control supply voltage at DC
24 - 24 V
Rated operation power NEMA
14.9 kW
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP00
Degree of protection (NEMA)
Other
Rated operation current Ie at AC-1, 400 V
32 A
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
6
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Rail mounting possible
No
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
24 - 690 V
Operating voltage at AC 60 Hz
24 - 690 V
Operating voltage at DC
0 - 0 V
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as change-over contact
0

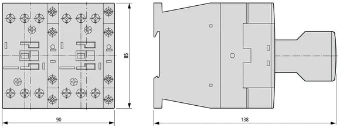

Width
90 mm
Height
85 mm
Depth
138 mm
