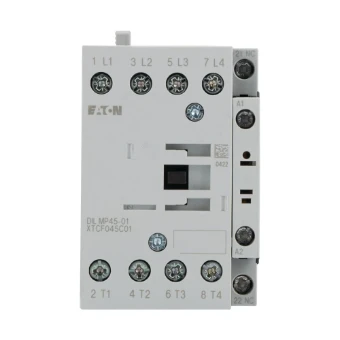

Power contactor, AC switching Eaton DILM

Add to selection

General information

Ordercode YESSS

0509-1915

Product code

118915

EAN code

4015081170425

Product group

Power contactor, AC switching

Brand

Eaton

Serie

DILM

Type

DILMP45-01(110V50HZ,120V60HZ)

Leistungsschütz, 4 -polig, Wechselstrombetätigung: 45 A, 1 Ö, 110 V Leistungsschütz, 4 -polig, Wechselstrombetätigung: 45 A, 1 Ö, 110 V 50 Hz, 120 V 60 Hz, Schraubklemmen

Product description

Contactor, Application: Contactors for 4 pole electric consumers, Contactors up to 200 A, 4 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, Connection technique: Screw terminals, Number of poles: 4 pole, 380 V 400 V: Ie= 25 A, Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 45 A, enclosed: Ith= 36 A, Conventional free air thermal current, 1 pole open: Ith= 117 A, enclosed: Ith= 105 A, 220 V 230 V: P= 7.5 kW, 380 V 400 V: P= 11 kW, 660 V 690 V: P= 14 kW , Contacts N/C = Normally closed: 1 NC, Instructions: Contacts to EN 50 012., with mirror contact., Voltage AC/DC: AC operation

Product specifications

Rated operation power at AC-3, 400 V

11 kW

Voltage type for actuating

Number of normally open contacts as main contact

Number of normally closed contacts as main contact

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Type of electrical connection of main circuit

Screw connection

Modular version

Rated control supply voltage at AC 50 Hz

110 - 110 V

Rated control supply voltage at AC 60 Hz

120 - 120 V

Rated operation power NEMA

11 kW

Rated control supply voltage at DC

0 - 0 V

Rated operation current Ie at AC-1, 400 V

45 A

Rated operation current Ie at AC-3, 400 V

25 A

Rated operation current Ie at AC-4, 400 V

15 A

Rated operation power at AC-4, 400 V

7 kW

Operating voltage at AC 50 Hz

24 - 690 V

Operating voltage at AC 60 Hz

24 - 690 V

Width

58 mm

Height

85 mm

Depth

97 mm

more specifications
