HRC fuse Eaton Bussmann High Speed Square Body
Add to selection
General information
Ordercode YESSS
0539-8785
Product code
170M2763
EAN code
5027590443432
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 80A 690V 00BTN/60 GR
Sicherungseinsatz, superflink, 80 A, AC 690 V, 200 kA, size
Sicherungseinsatz, superflink, 80 A, AC 690 V, 200 kA, size 00, 30 x 62 x 64 mm, aR, IEC, Kennmelder Typ T
Product description

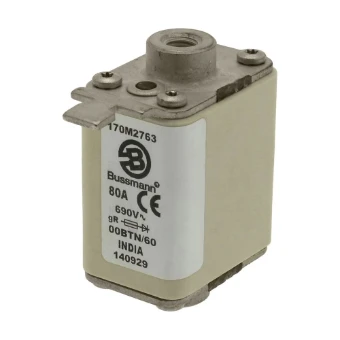

Fuse, Fuse-link, high speed, 80 A, AC 690 V, size 00, 30 x 62 x 64 mm, gR, IEC, single indicator, square body with flush end contacts, indicator style T for microswitch, semiconductor protection, IEC 60269-4, Breaking Capacity 200 kA
Product specifications
Fuse construction type according to IEC 60269
00
Type of current
AC
Rated voltage AC
690 V
Rated current
80 A
Utilization category
gR (general purpose semiconductor protection)
Breaking capacity
200 kA
Colour code
None
Type of fuse status indicator
Top fuse status indicator
Power loss at rated current
15 W
Mounting holes
M8
Centre-to-centre distance of connections
64 mm
Sicherungssystem nach IEC 60269
IEC 60269-4 Flush-End-Anschluss Typ A
