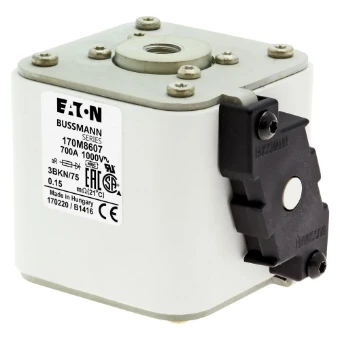

HRC fuse Eaton Bussmann High Speed Square Body
Add to selection
General information
Ordercode YESSS
0540-0310
Product code
170M8607
EAN code
5027590465588
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 700A 1000V 3BKN/75 AR UR
Sicherungseinsatz, superflink, 700 A, AC 1000 V, 125 kA, size
Sicherungseinsatz, superflink, 700 A, AC 1000 V, 125 kA, size 3, 74 x 92 x 76 mm, aR, IEC, UL, Kennmelder Typ K
Product description
Fuse, Fuse-link, high speed, 700 A, AC 1000 V, size 3, 74 x 92 x 76 mm, aR, IEC, UL, single indicator, square body with flush end contacts, indicator style K for microswitch, semiconductor protection, IEC 60269-4, Breaking Capacity 150 kA
Product specifications
Fuse construction type according to IEC 60269
3
Type of current
AC
Rated voltage AC
1000 V
Rated current
700 A
Utilization category
aR (accompanied semiconductor protection)
Breaking capacity
125 kA
Colour code
None
Type of fuse status indicator
Centre fuse status indicator
Power loss at rated current
122 W
Mounting holes
M12
Centre-to-centre distance of connections
75.4 mm
Sicherungssystem nach IEC 60269
IEC 60269-4 Flush-End-Anschluss Typ A
