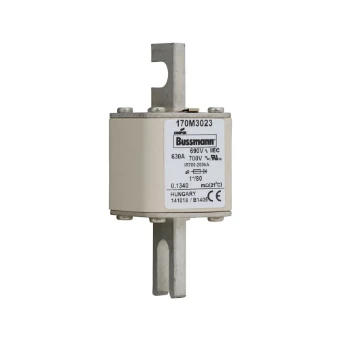

HRC fuse Eaton Bussmann High Speed Square Body
Add to selection
General information
Ordercode YESSS
0539-8810
Product code
170M3023
EAN code
5027590443708
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 630A 690V 1*/80 AR UC
Sicherungseinsatz, superflink, 630 A, AC 690 V, 200 kA, compact
Sicherungseinsatz, superflink, 630 A, AC 690 V, 200 kA, compact DIN 1, 45 x 45 x 104 mm, aR, DIN, IEC, einfacher Kennmelder
Product description
Fuse, Fuse-link, high speed, 630 A, AC 690 V, compact DIN 1, 45 x 45 x 104 mm, aR, DIN, IEC, single indicator, square body with centre-bolted tags (slotted), semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 200 kA
Product specifications
Fuse construction type according to IEC 60269
Other
Type of current
AC
Rated voltage AC
690 V
Rated current
630 A
Utilization category
aR (accompanied semiconductor protection)
Breaking capacity
200 kA
Colour code
None
Type of fuse status indicator
Top fuse status indicator
Power loss at rated current
80 W
Mounting holes
M10
Centre-to-centre distance of connections
76.5 mm
Sicherungssystem nach IEC 60269
Other
