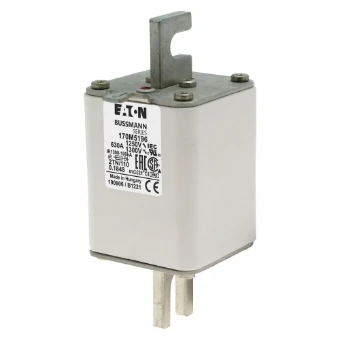

HRC fuse Eaton Bussmann High Speed Square Body
Add to selection
General information
Ordercode YESSS
0539-9508
Product code
170M5196
EAN code
5027590456135
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 630A 1250V 2TN/110 AR CU
Sicherungseinsatz, superflink, 630 A, AC 1250 V, 100 kA, size
Sicherungseinsatz, superflink, 630 A, AC 1250 V, 100 kA, size 2, 61 x 75 x 138 mm, aR, DIN, IEC, Kennmelder Typ T
Product description
Fuse, Fuse-link, high speed, 630 A, AC 1250 V, size 2, 61 x 75 x 138 mm, aR, DIN, IEC, single indicator, square body with centre-bolted tags (slotted), indicator style T for microswitch, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 100 kA
Product specifications
Fuse construction type according to IEC 60269
2
Type of current
AC
Rated voltage AC
1250 V
Rated current
630 A
Utilization category
aR (accompanied semiconductor protection)
Breaking capacity
100 kA
Colour code
None
Type of fuse status indicator
Top fuse status indicator
Power loss at rated current
110 W
Mounting holes
M10
Centre-to-centre distance of connections
108 mm
Sicherungssystem nach IEC 60269
