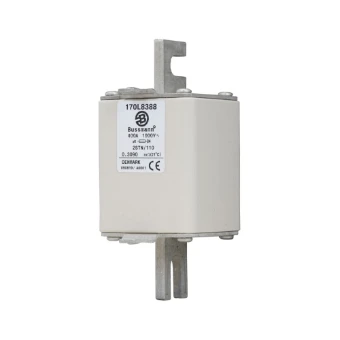

HRC fuse Eaton Bussmann High Speed Square Body
Add to selection
General information
Ordercode YESSS
0539-8468
Product code
170L8388
EAN code
5027590440073
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 400A 1000V 2STN/110 AR
Sicherungseinsatz, superflink, 400 A, AC 1000 V, size 2, 61
Sicherungseinsatz, superflink, 400 A, AC 1000 V, size 2, 61 x 75 x 140 mm, aR, DIN, IEC, einfacher Kennmelder
Product description
Fuse, Fuse-link, high speed, 400 A, AC 1000 V, size 2, 61 x 75 x 140 mm, aR, DIN, IEC, single indicator, square body with centre-bolted tags (slotted), indicator style T for microswitch, Special type, semiconductor protection, DIN 43653, IEC 60269-4
Product specifications
Fuse construction type according to IEC 60269
2
Type of current
AC
Rated voltage AC
1000 V
Rated current
400 A
Utilization category
aR (accompanied semiconductor protection)
Breaking capacity
100 kA
Colour code
None
Type of fuse status indicator
Top fuse status indicator
Power loss at rated current
80 W
Mounting holes
M10
Centre-to-centre distance of connections
108 mm
Sicherungssystem nach IEC 60269
