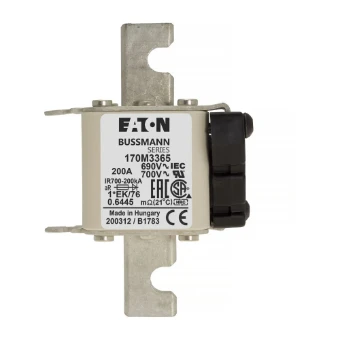

HRC fuse Eaton Bussmann High Speed Square Body
Add to selection
General information
Ordercode YESSS
0539-8937
Product code
170M3365
EAN code
5027590447300
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 200A 690V 1*EK/76 AR UC
Sicherungseinsatz, superflink, 200 A, AC 690 V, 200 kA, compact
Sicherungseinsatz, superflink, 200 A, AC 690 V, 200 kA, compact size 1, 45 x 59 x 102 mm, aR, IEC, UL, Kennmelder Typ K, Französisch
Product description
Fuse, Fuse-link, high speed, 200 A, AC 690 V, compact size 1, 45 x 59 x 102 mm, aR, IEC, UL, single indicator, square body with centre-bolted tags (slotted), french style, indicator style K for microswitch, semiconductor protection, IEC 60269-4, Breaking Capacity 200 kA
Product specifications
Fuse construction type according to IEC 60269
Other
Type of current
AC
Rated voltage AC
690 V
Rated current
200 A
Utilization category according to IEC 60269
aR
Breaking capacity
200 kA
Colour code
None
Type of fuse status indicator
Centre fuse status indicator
Power loss at rated current
35 W
Mounting holes
M8
Centre-to-centre distance of connections
76 mm
Fuse system according to IEC 60269
Other
Product information
