General information

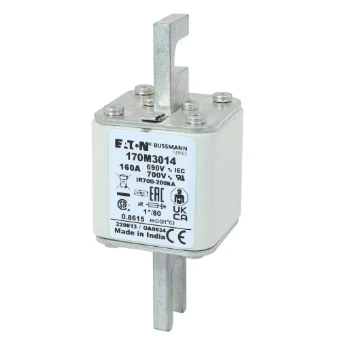

High speed square body fuse, 690 V (IEC), 700 V
High speed square body fuse, 690 V (IEC), 700 V (UL), 160 A, Fuse size
Ordercode YESSS
0539-8801
Product code
170M3014
EAN code
05027590443593
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 160A 690V 1*/80 AR UC
Product description
High speed square body fuse, Voltage rating: 690 V (IEC), 700 V (UL), Amperage rating: 160 A, Fuse size: 1*, Fuse indicator: Top fuse status indicator, Fuse shape: Square body, slotted center bolted tags, DIN 43653, /80 Visual indicator, Utilization category: aR (accompanied semiconductor protection)
Product specifications
Fuse construction type according to IEC 60269
Other
Type of current
AC
Rated voltage AC
690 V
Rated current
160 A
Utilization category according to IEC 60269
aR
Breaking capacity
200 kA
Colour code
None
Type of fuse status indicator
Top fuse status indicator
Power loss at rated current
30 W
Mounting holes
M10
Centre-to-centre distance of connections
76.5 mm
Fuse system according to IEC 60269
Other
