General information

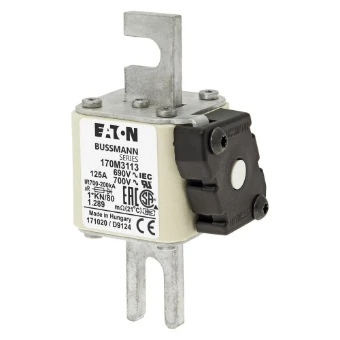

Fuse-link, high speed, 125 A, AC 690 V, compact DIN
Fuse-link, high speed, 125 A, AC 690 V, compact DIN 1, 45 x 59 x 104 m
Ordercode YESSS
0539-8837
Product code
170M3113
EAN code
05027590443920
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 125A 690V 1*KN/80 AR UC
Product description
Fuse, Fuse-link, high speed, 125 A, AC 690 V, compact DIN 1, 45 x 59 x 104 mm, aR, DIN, IEC, single indicator, square body with centre-bolted tags (slotted), indicator style K for microswitch, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 200 kA
Product specifications
Fuse construction type according to IEC 60269
Other
Type of current
AC
Rated voltage AC
690 V
Rated current
125 A
Utilization category according to IEC 60269
aR
Breaking capacity
200 kA
Colour code
None
Type of fuse status indicator
Centre fuse status indicator
Power loss at rated current
26 W
Mounting holes
M10
Centre-to-centre distance of connections
76.4 mm
Fuse system according to IEC 60269
Other
