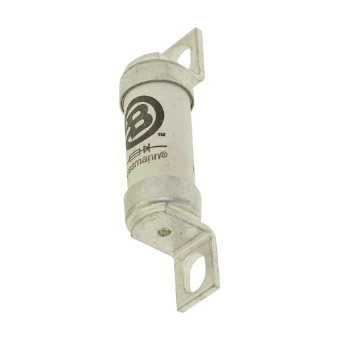

HRC fuse Eaton Bussmann High Speed BS
Add to selection
General information
Ordercode YESSS
0540-0418
Product code
32FE
EAN code
5027590476683
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed BS
Type
NOT STANDARD - MADE TO SPECIAL ORDER
Sicherungseinsatz, superflink, 32 A, AC 690 V, DC 500 V,
Sicherungseinsatz, superflink, 32 A, AC 690 V, DC 500 V, 200 kA, BS88, 19 x 77 mm, aR, BS
Product description
Fuse, Fuse-link, high speed, 32 A, AC 690 V, DC 500 V, BS88, 19 x 77 mm, aR, BS, offset bolted tags, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, BS88-4, IEC 60269-4, Breaking Capacity 200 kA
Product specifications
Fuse construction type according to IEC 60269
Other
Type of current
AC/DC
Rated voltage AC
690 V
Rated voltage DC
500 V
Rated current
32 A
Utilization category according to IEC 60269
aR
Breaking capacity
200 kA
Colour code
None
Type of fuse status indicator
None
Mounting holes
M6
Centre-to-centre distance of connections
61.8 mm
Fuse system according to IEC 60269
Other
