General information
Fuse-link, high speed, 100 A, AC 690 V, DC 500

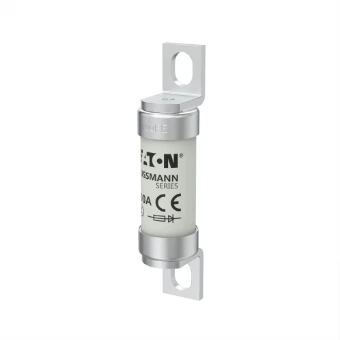

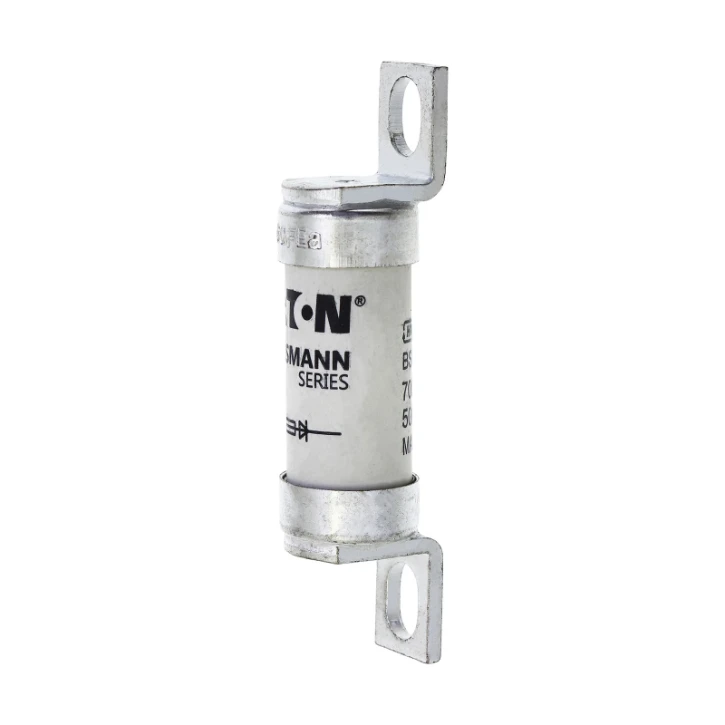

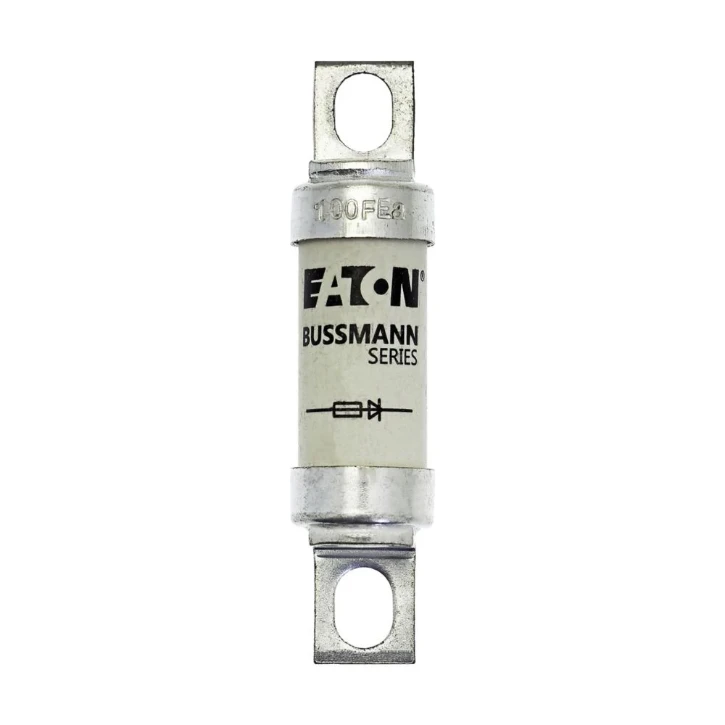

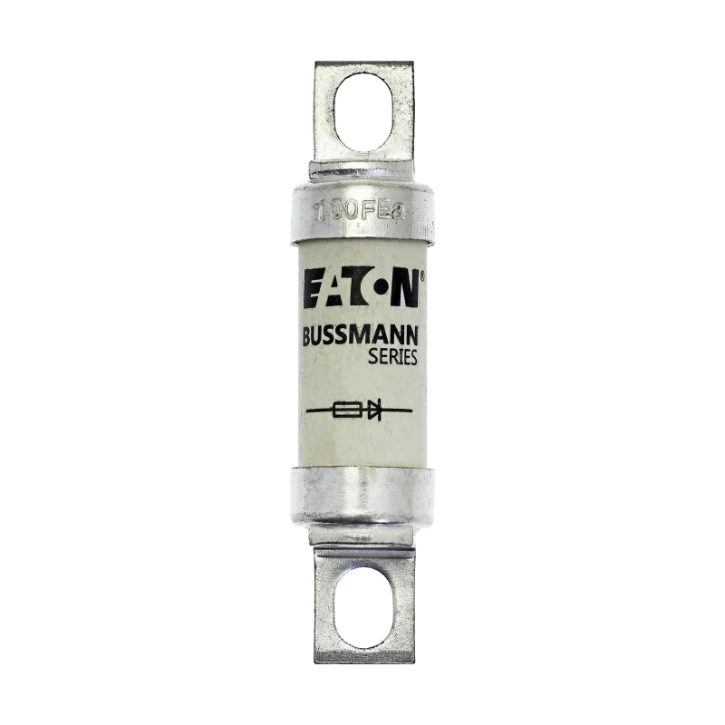

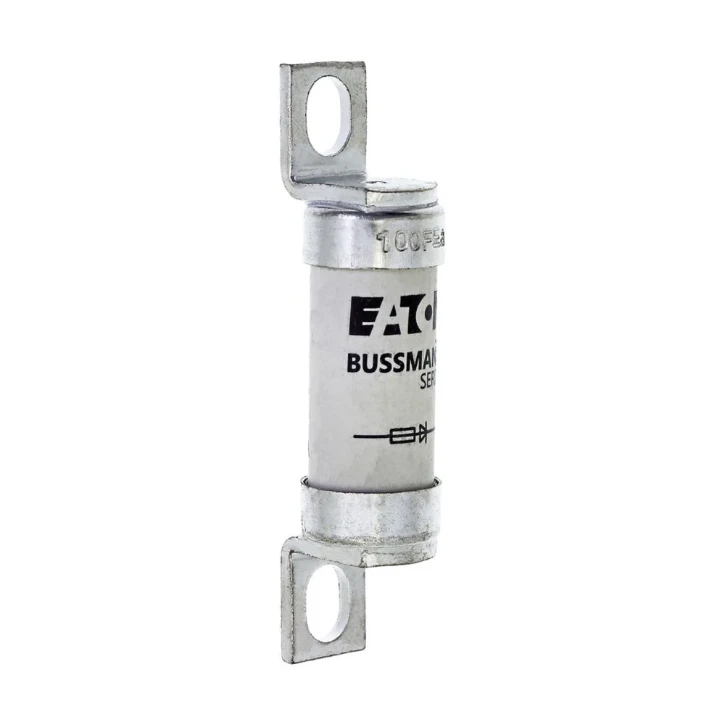

Fuse-link, high speed, 100 A, AC 690 V, DC 500 V, BS88, 19 x 77 mm, aR
Ordercode YESSS
0539-8169
Product code
100FE
EAN code
05027590427647
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed BS
Type
100A 690V AC TYPE T FUSE(100FEa = 100FE)
Product description
Fuse, Fuse-link, high speed, 100 A, AC 690 V, DC 500 V, BS88, 19 x 77 mm, aR, BS, offset bolted tags, DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, BS88-4, IEC 60269-4, Breaking Capacity 200 kA, Optional accessories fuse-holder BH-0111
Product specifications
Fuse construction type according to IEC 60269
Other
Type of current
AC/DC
Rated voltage AC
690 V
Rated voltage DC
500 V
Rated current
100 A
Utilization category according to IEC 60269
aR
Breaking capacity
200 kA
Colour code
None
Type of fuse status indicator
None
Power loss at rated current
23 W
Mounting holes
M6
Centre-to-centre distance of connections
61.8 mm
Fuse system according to IEC 60269
Other
