Motor operator 208-240 VAC/DC
- 0509-8441
- |
- 184264
0
piece
in stock
Don’t have an account? Create one
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

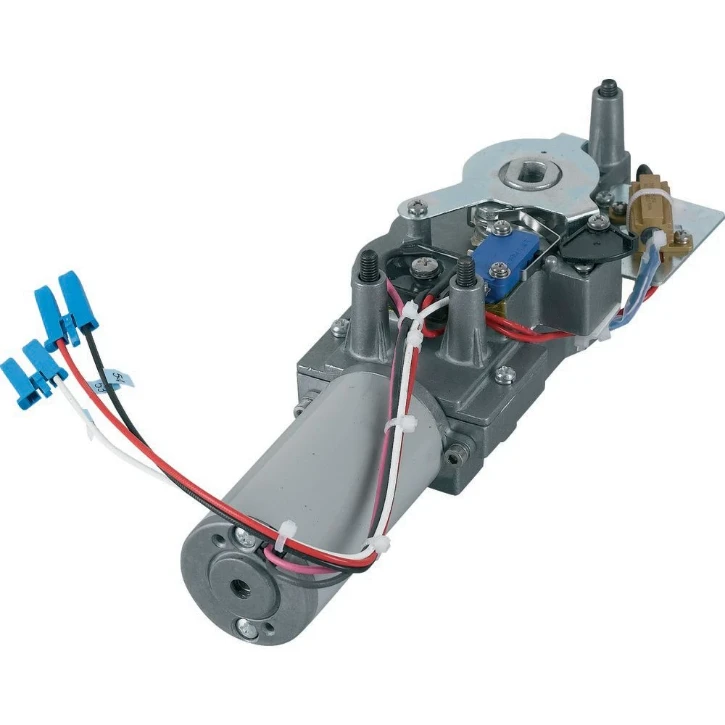

Motor operator 208-240 VAC/DC
Motor operator 208-240 VAC/DC
Ordercode YESSS
0509-8441
Product code
184264
EAN code
04015081784172
Product group
Motor operator for power circuit-breaker
Brand
Eaton
Serie
ACB's & accessoires
Type
IZMX-M40-230AD-1
Product description
Accessories, Motor operator, The motor automatically tensions the spring force storage mechanism for remote or local actuation., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 220 - 240 V AC 50/60 Hz, 220 - 250 V DC V, Operating range x US 0,85 - 1,1 Factor, max. operating current In 1,5 AC / 1 DC A, max. starting current (35ms) In 4,5 AC / 4 DC A, max. power AC/DC 400 AC / 250 DC VA/W, max. starting power (35ms) AC/DC 4 VA/W, For use with IZMX40…, INX40…
Product specifications
Type of switch drive
Motor drive
Rated control supply voltage AC 50 Hz
208 - 240 V
Rated control supply voltage AC 60 Hz
208 - 240 V
Rated control supply voltage DC
220 - 250 V
Voltage type for actuating
AC/DC
