Busbar terminal Eaton Aansluitmateriaal
Add to selection
General information
Ordercode YESSS
0507-7004
Product code
107187
EAN code
4015081069507
Product group
Busbar terminal
Brand
Eaton
Serie
Aansluitmateriaal
Type
AKU16/5
Leiteranschlussklemme, 1,5-16qmm, f. 5mm
Leiteranschlussklemme, 1,5-16qmm, f. 5mm
Product description

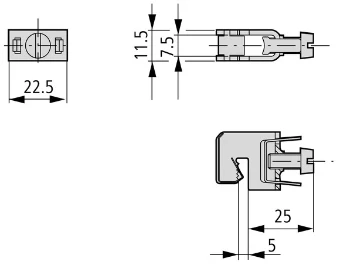

Universal conductor connection terminal, 1.5-16mm² AWG 14-AWG 6., directly terminated, 8x6x0.5, 180A, can be used for all 5mm thick flat busbars, width=11.5mm, termination space WxH=7.5x7.5mm, with integrated retaining spring, with open terminal chamber and captive fixing screw, can be used for SASY60i, SASY185i
Product specifications
Busbar thickness
5 - 5 mm
Busbar width
0 - 0 mm
Suitable for
Flat rail
Width clamp
11.5 mm
Max. conductor cross section
16 mm²
Max. rated operation current Ie
180 A
Suitable for round conductor connection
Yes
Suitable for sector conductor connection
Yes
Suitable for strip conductor connection
Yes
