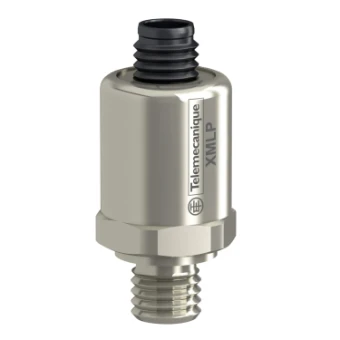

Pressure switch Schneider Electric
Add to selection
General information
Ordercode YESSS
6036-6491
Product code
XMLP100BD21F
EAN code
3389119639460
Product group
Pressure switch
Brand
Schneider Electric
Product specifications
Suitable as guard
Yes
Suitable as limiter
No
Engaging pressure
0 - 100 bar
Initial setting
0 - 100000 hPa
Degree of protection (IP)
IP65/IP67
Suitable as 2-point controller
No
End setting
0 - 100000 hPa
Max. test pressure
200 bar
Bursting pressure
600 bar
Medium temperature
0 - 120 °C
Thread size
Other
Rated voltage Ue at DC
24 - 24 V
End value measuring range pressure
10000000 Pa
Switch off pressure
0 - 100 bar
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Type of electric connection
Other
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
0
With hand operation
No
With manual on/off switch
No
Electronic version
Yes
With display
No
Explosion-proof
No
Degree of protection (NEMA)
Other
Diameter
26 mm
Depth
38.1 mm
Max. operating pressure
100000 hPa
