Feed-through terminal block WAGO
Add to selection
General information
Ordercode YESSS
0558-2670
Product code
2002-2203
EAN code
4044918691079
Product group
Feed-through terminal block
Brand
WAGO

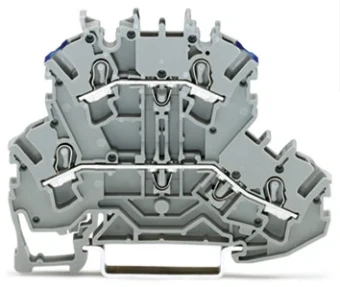

Double-deck terminal block Through/through terminal block L/N gray
Double-deck terminal block Through/through terminal block L/N gray
Product description
Double-deck terminal block Through/through terminal block L/N without marker carrier suitable for Ex e II applications Blue conductor entry upper
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Number of levels
2
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Rated current In
24 A
Rated voltage
500 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Operating temperature
105 - 105 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Grey
Internally connected stages
No
Width
5.2 mm
Height
69.7 mm
Depth
51.7 mm
Product information
