Feed-through terminal block WAGO
Add to selection
General information
Ordercode YESSS
0557-7712
Product code
279-513
EAN code
4050821109372
Product group
Feed-through terminal block
Brand
WAGO

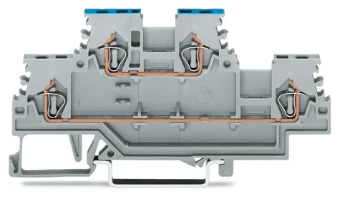

Double-deck terminal block Through/through terminal block L/N gray
Double-deck terminal block Through/through terminal block L/N gray
Product description
Double-deck terminal block Through/through terminal block L/N for DIN-rail 35 x 15 and 35 x 7.5 1.5 mm² 1,50 mm² gray
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 1.5 mm²
Number of levels
2
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Connectable conductor cross section solid-core
0.08 - 1.5 mm²
Connectable conductor cross section multi-wired
0.08 - 1.5 mm²
Rated current In
18 A
Rated voltage
500 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Operating temperature
105 - 105 °C
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Grey
Internally connected stages
No
Width
4 mm
Height
85 mm
Depth
39 mm
Product information
