Feed-through terminal block Phoenix Contact
Add to selection
General information
Ordercode YESSS
6023-9449
Product code
3273369
EAN code
4055626392547
Product group
Feed-through terminal block
Brand
Phoenix Contact
Distribution block
Distribution block
Product description

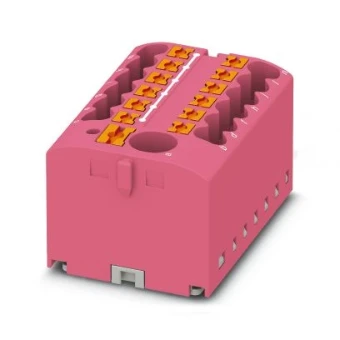

Distribution block, the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, connection method: Push-in connection, Load contact, cross section: 0.14 mm² - 4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: pink
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.14 - 2.5 mm²
Number of levels
1
Number of clamp positions per level
13
Mounting method
Other
Material insulation body
Other
Connectable conductor cross section fine-strand with cable end sleeve
0.14 - 2.5 mm²
Connectable conductor cross section solid-core
0.14 - 4 mm²
Rated current In
24 A
Rated voltage
450 V
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Operating temperature
-60 - 105 °C
Closing plate required
No
Colour
Other
Internally connected stages
Yes
Width
41 mm
Height
28.6 mm
Depth
21.7 mm
