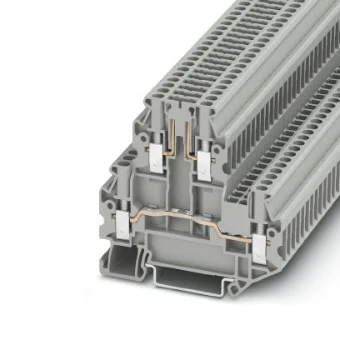

(Knife) disconnect terminal block Phoenix Contact
Add to selection
General information
Ordercode YESSS
6023-5279
Product code
3044644
EAN code
4046356894074
Product group
(Knife) disconnect terminal block
Brand
Phoenix Contact
Disconnect terminal block
Disconnect terminal block
Product description
Disconnect terminal block, Current and voltage are determined by the plug used., With test socket screws for insertion of test plugs, nom. voltage: 400 V, nominal current: 22 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.14 - 4 mm²
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Connectable conductor cross section fine-strand with cable end sleeve
0.14 - 2.5 mm²
Connectable conductor cross section solid-core
0.14 - 4 mm²
Connectable conductor cross section multi-wired
0.14 - 1.5 mm²
Rated voltage
400 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Number of clamp positions per level
2
Operating temperature
-60 - 105 °C
Colour
Grey
Width
7.72 mm
Height
69.9 mm
Depth
64.35 mm
