Circular connector for field assembly (industrial connector) Phoenix Contact
Add to selection
General information
Ordercode YESSS
6021-2190
Product code
1551684
EAN code
4046356156219
Product group
Circular connector for field assembly (industrial connector)
Brand
Phoenix Contact
Device connector, rear mounting
Device connector, rear mounting
Product description

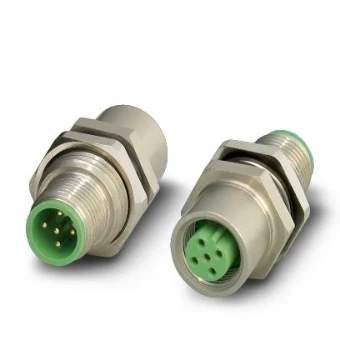

Sensor/actuator control cabinet feed-through, male to female, 5-pos., M12, shielded, B-coded, bipolar/screw mounting with M16 thread
Product specifications
Contact type
Pin
Number of data contacts
0
Number of power contacts
0
Type of housing
Straight
Number of control contacts
5
Rated current In
4 A
Ambient temperature
85 - 85 °C
Rated voltage
60 V
Over voltage category
II
Pollution degree
2
Material of contact surface
Gold
Material housing
Other
Locking mechanism
Other
Material thread ring
Other
Inflammability class of insulation material according to with UL94
HB
With protective conductor
No
Degree of protection (IP), mounted
IP65/IP67
Min. number of insertion cycles
100
Screened
No
With status indication
No
