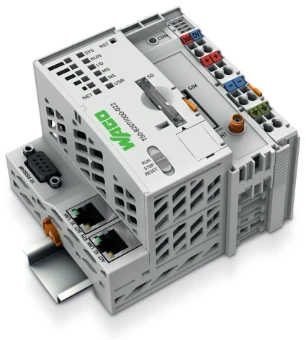

PLC CPU-module WAGO

Add to selection
General information
Ordercode YESSS
6044-0926
Product code
750-8207/000-022
EAN code
4055143663663
Product group
PLC CPU-module
Brand
WAGO
Controller PFC200 Application for energy data management 2 x ETHERNET, Controller PFC200 Application for energy data management 2 x ETHERNET,
Product description

Controller PFC200 Application for energy data management 2 x ETHERNET, RS-232/-485, Mobile Radio Module

Product specifications
Model
Compact
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
2
Type of memory
RAM
Supply voltage DC
24 - 24 V
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-485
1
With optical interface
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
IO link master
No
Radio standard GPRS
Yes
System accessory
Yes
Radio standard GSM
Yes
Redundancy
No
Radio standard UMTS
No
With display
No
Memory size
128 KByte
Additional program memory possible
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
103 mm
Height
65 mm
Depth
100 mm
Supporting protocol for DNP3
No
Supporting protocol for IEC 60870
No
Supporting protocol for IEC 61850 Ethernet
No
more specifications
