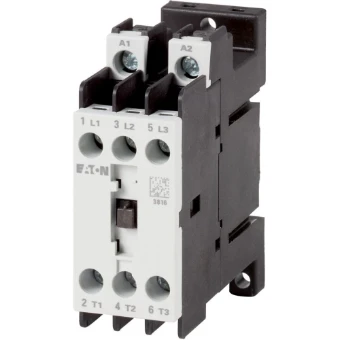

Power contactor, AC switching Eaton DILM

Add to selection

General information

Ordercode YESSS

6060-1049

Product code

190996

EAN code

4015081912193

Product group

Power contactor, AC switching

Brand

Eaton

Serie

DILM

Type

DILMT12(230V50HZ/240V60HZ)

Leistungsschütz, 3-polig, 380 V 400 V: 5.5 kW, 230 V Leistungsschütz, 3-polig, 380 V 400 V: 5.5 kW, 230 V 50 Hz, 240 V 60 Hz, Wechselstrombetätigung, Schraubklemmen

Product description

Contactor, Application: Contactors for Motors, Contactors up to 95 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 12 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 20 A, Max. rating for three-phase motors , 50 - 60 Hz AC-3 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 5.5 kW, Can be combined with auxiliary contact: DILT-XHI.., Voltage AC/DC: AC operation

Product specifications

Rated operation power at AC-3, 400 V

5.5 kW

Voltage type for actuating

Number of normally open contacts as main contact

Number of normally closed contacts as main contact

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Type of electrical connection of main circuit

Screw connection

Suitable for distribution board

Rated control supply voltage AC 50 Hz

230 - 230 V

Rated control supply voltage AC 60 Hz

240 - 240 V

Rated operation power NEMA

0 kW

Rated control supply voltage DC

0 - 0 V

Rated operation current Ie at AC-1, 400 V

20 A

Rated operation current Ie at AC-3, 400 V

12 A

Rated operation current Ie at AC-4, 400 V

0 A

Rated operation power at AC-4, 400 V

0 kW

Operating voltage AC 50 Hz

24 - 690 V

Operating voltage AC 60 Hz

24 - 690 V

Width

27 mm

Height

70.1 mm

Depth

77.5 mm

more specifications
