Cable connector WAGO
Add to selection
General information
Ordercode YESSS
6044-3970
Product code
721-605/000-042
EAN code
4044918262811
Product group
Cable connector
Brand
WAGO

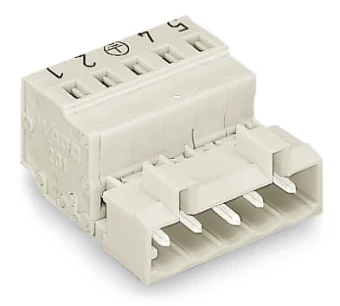

1-conductor male connector CAGE CLAMP® 2.5 mm² light gray
1-conductor male connector CAGE CLAMP® 2.5 mm² light gray
Product description
1-conductor male connector CAGE CLAMP® 2.5 mm² Pin spacing 5 mm 5-pole Preceding ground contact 100% protected against mismating direct marking
Product specifications
Type of connection
Printed circuit board to cable
Contact type
Pin
Number of poles
5
Number of plug-in contact rows
1
Modular spacing contacts
5 mm
Modular spacing connections
5 mm
Angle contact/conductor connection
180° (horizontal)
Rated current In
12 A
Rated voltage
320 V
Rated surge voltage
4 kV
Over voltage category
III
Pollution degree
2
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 1.5 mm²
Connectable conductor cross section solid-core
0.08 - 2.5 mm²
Connectable conductor cross section multi-wired
0.08 - 2.5 mm²
Type of electric connection
Spring clamp connection
Connectable cable type
Tubular cable
Material of contact surface
Tin
Material contact
Other copper alloys
Material insulation body
Thermoplastic
Material housing
Plastic
Coating housing
Uncoated
Colour housing
Grey
With protective conductor
No
Operating temperature
-60 - 100 °C
Degree of protection (IP), mounted
IP10
