Crimp tool cable lugs, cable end sleeves, screen connection Cimco
Add to selection
General information
Ordercode YESSS
0561-6604
Product code
106650
EAN code
4021103004180
Product group
Crimp tool cable lugs, cable end sleeves, screen connection
Brand
Cimco

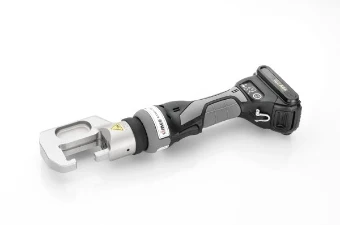

Hydraulic accumulator press up to 60 kN 185 mm², bar
Hydraulic accumulator press up to 60 kN 185 mm², bar shape
Product description
Crimping tool in bar form, Special details: Crimping head 180 rotatable, Interchangeable crimping inserts, Max. Processing speed due to high-performance motor, Automatic return after completed pressing, Open pressing head in C-shape, Pressing force: 62 kN, Stroke/opening width: 17 mm, Pressing range: 6 - 185 mm², Pressing time (depending on cross-section): 8 - 9 s, Battery voltage: 18 V, Battery capacity: 2.0 Ah Li-Ion, Battery charging time: 30 min, weight incl. battery: 3300 g, dimensions (L x W x H): 390 x 75 x 128 mm, working range: -10 C to +50 C
Product specifications
Suitable for
Cable lugs and connectors
Compression shape
Universal (exchangeable inserts)
Cross section
6 - 185 mm²
Length
395 mm
Construction/operation
Accumulator-hydraulic
Inserts exchangeable
Yes
With automatic return
Yes
Cycle time
8 - 9 s
Compression force
62 - 62 kN
