Tubular cable lug for copper conductors Cimco
Add to selection
General information
Ordercode YESSS
0103-6795
Product code
180826
EAN code
4021103808269
Product group
Tubular cable lug for copper conductors
Brand
Cimco

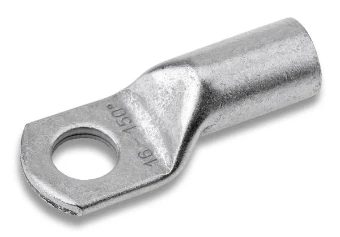

Tubular cable lug, ring type, conductor cross section/ connecting bolt
Tubular cable lug, ring type, conductor cross section/ connecting bolt 400 mm²/12 mm
Product description
Tubular cable lug, standard design, ring-shaped, up to 6 mm² with inspection hole, made of electro-tinned E-Cu tube, conductor cross-section/ connection bolt 400 mm²/12 mm
Product specifications
Nominal cross section
400 mm²
Bolt dimension (metric)
12
Insulated
No
Material
Copper
Connecting angle
180° (horizontal)
Flange shape
Ring shape
Slender flange model
No
With sight-hole
No
Surface protection
Tinned
Number of mounting holes
1
AWG size
750 kcmil
