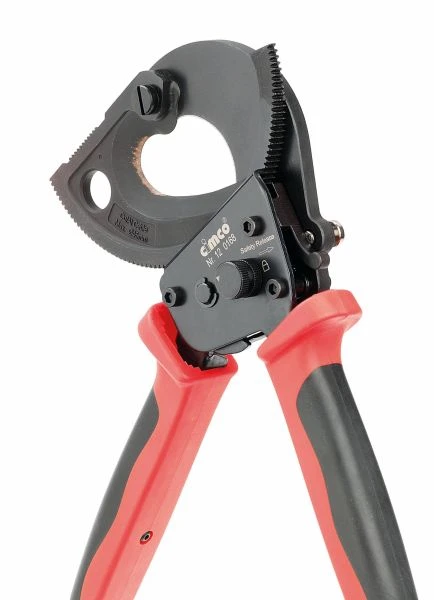

One-hand ratchet cable cutter for crimp-free cutting of cables *
- 0011-2920
- |
- 120168
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Product description

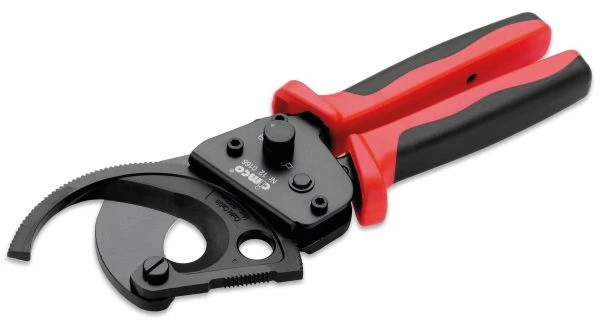

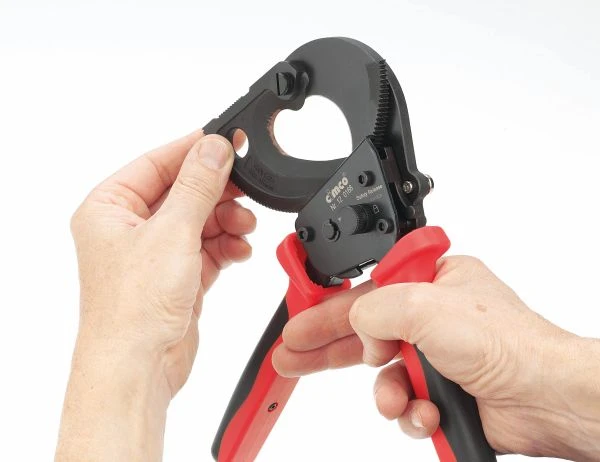

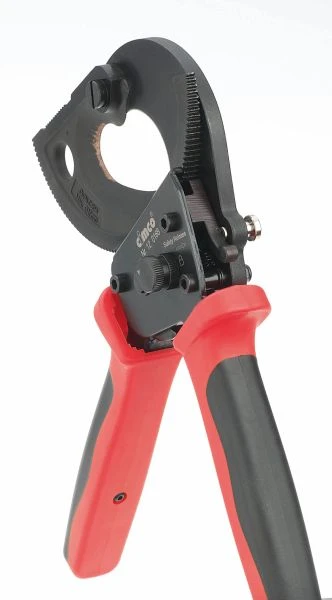

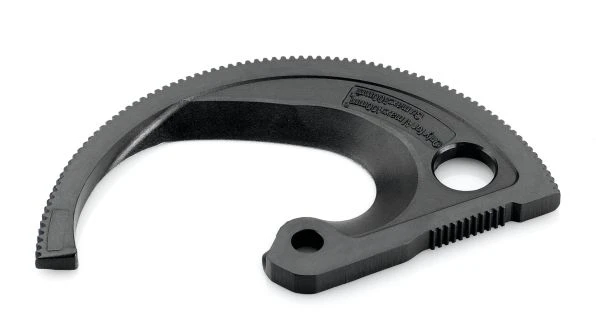

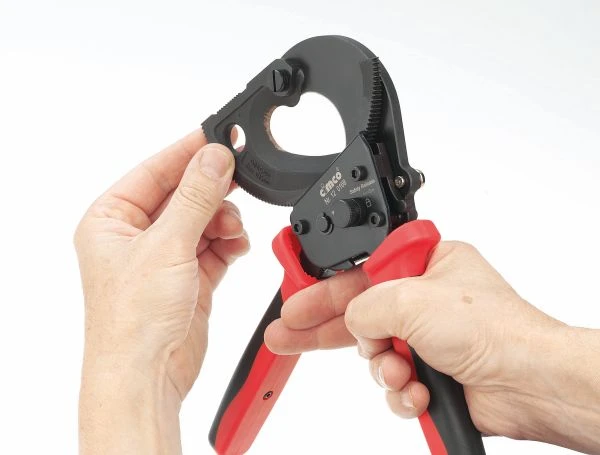

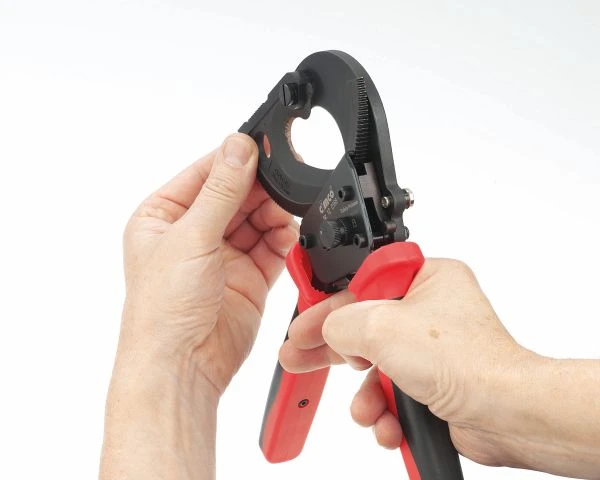

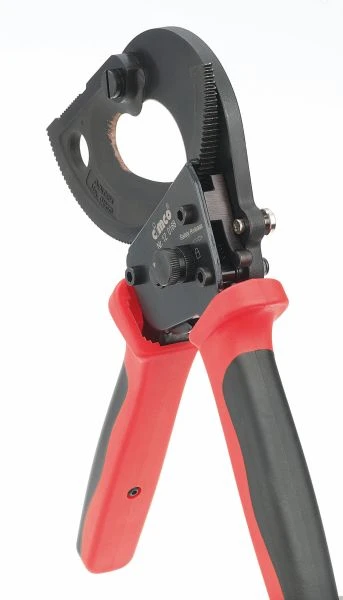

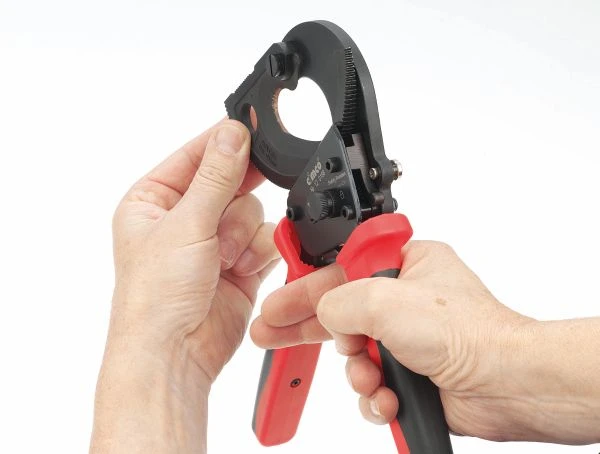

One-hand ratchet cable cutter for crimp-free cutting of cables with an outer diameter of max. 45 mm. Suitable for copper and aluminum cables, not suitable for steel wire, steel-armored cables and hard-drawn Cu and Bz conductors. Clean cut due to sharp, specially hardened cutting edges, despite compact design can be operated with one hand only, thanks to ratchet mechanism with needle-bearing eccentric transmission and ergonomic handles with small opening width. However, the handles are long enough to support the second hand during peak loads. Weight only 980 g. Movable, fully swiveling cutting edge that can be unlocked in any position, easy to replace (replacement swiveling blade Cimco item no. 12 9168), locking of the handles via rotary knob (red marking), easy opening of the cutting blades by pawl that can be locked in the open position. Max. Cu ( copper ) max. diameter 45 mm flexible 400 mm² / 800 MCM stranded 300 mm² / 600 MCM sector conductor 3 x 70 SM Al ( aluminum ) max. diameter 45 mm stranded 400 mm² / 800 MCM sector conductor 4 x 70 SE
