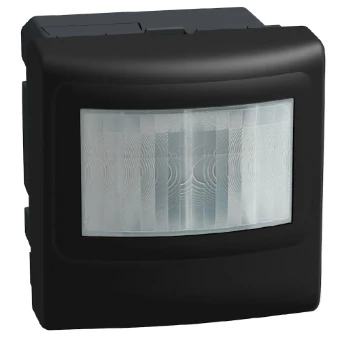

Movement sensor/presence detector complete BTIcino
Add to selection
General information
Ordercode YESSS
6107-8857
Product code
YD4430N
EAN code
8005543765494
Product group
Movement sensor/presence detector complete
Brand
BTIcino
Product description
LightN détecteur 3 fils ss dér 2 mod - noir
Product specifications
Model
Movement sensor
Colour
Black
Degree of protection (IP)
IP20
Detection angle horizontal
2 - 30 °
Max. reach frontally
6 m
Forced switch on
No
Max. reach sideways
6 m
Creep-under protection
Yes
Response value sensitivity adjustable
Yes
Remote operation
No
Constant light control
Yes
Scan angle
120 °
HVAC-control
No
Forced switch off
No
Animal zone
No
Networkable
Yes
Optimum mounting height
1.2 m
Max. presence range
40 m²
Staircase light controller
Yes
Bridging switch
No
With remote control
No
Diameter reach on floor
6 m
Suitable for wireless transmission
No
Response value luminosity adjustable
No
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Suitable for ceiling mounting
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Connection type
Screwed terminal
Surface finishing
Matt
RAL-number (similar)
9011
Transparent
Yes
Min. switch-on time
30 s
Voltage type
AC
Anti-bacterial treatment
No
Max. duty cycle
600 min
Switch-off delay
0 s
Switching-on delay
0 s
Max. starting current
2 A
Substation input
No
Impact strength
IK04
Frequency
50 - 60 Hz
With alarm function
No
Suitable for C-load
No
Number of switching zones
1
Min. starting current
0.5 A
Width
45 mm
Height
45 mm
Depth
49.5 mm
Built-in width
45 mm
Built-in depth
35 mm
Built-in length
45 mm
Min. depth of built-in installation box
45 mm
Nominal voltage
230 - 230 V
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Background monitoring
No
With acoustic sensor
No
With connection cable
No
Connection cable length
0 mm
