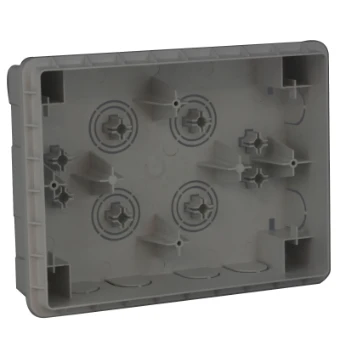

Box/housing for built-in mounting in the wall/ceiling BTIcino
Add to selection
General information
Ordercode YESSS
0549-9268
Product code
3487
EAN code
8005543615072
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
BTIcino
Product description
MH - Boîte d'encastrement pour l'écran 7" HOMETOUCH
Product specifications
Mounting method
Flush-mounted
Shape
Rectangular
Provided with revolving ring
No
Air tight
No
Couplable
No
With screws
Yes
Construction type
Device connection box (round/square)
Model
Single
Equipped with
None
Length
185 mm
Depth
50 - 50 mm
Width
136 mm
Inner depth
48 mm
For number of device inserts
1
Mounting switching equipment
Screwing
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
20/25 mm
Housing feed-through by nozzle
Yes
Housing feed-through by step membrane
No
Pipe locking
No
Inlet from the rear
Yes
Number of inlets
16
Material
Plastic
Pipe locking optional
No
Halogen free
No
Surface protection
Untreated
Colour
White
Number of included spouts
0
Degree of protection (IP)
Other
Cover attachment
Other
Sealable
No
Circuit integrity
None
With screening
No
Cover model
None
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None
