Ceiling-/wall luminaire BTIcino

Add to selection
General information
Ordercode YESSS
0431-7342
Product code
N4362
EAN code
8005543537183
Product group
Ceiling-/wall luminaire
Brand
BTIcino
Product description

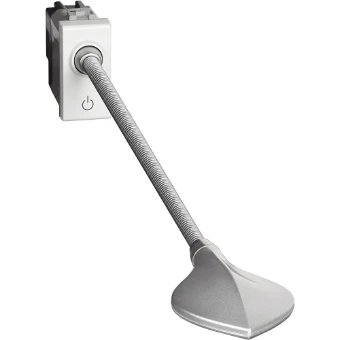

LL liseuse 230V - 3,3W 1 module - blanc

Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device voltage-controlled
With control gear
No
Suitable for emergency lighting
Yes
Nominal voltage
230 - 250 V
Nominal current
15 - 25 mA
Colour temperature
4000 - 5500 K
Housing material
Plastic
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
White
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Plastic, opal
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
White
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
> 80° - Extreme wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
44 mm
Dimming programmable
No
Width
22 mm
Dimming RF
No
Height/depth
170 mm
Dimming Touch and Dim
No
Built-in length
44 mm
Dimming Zigbee
No
Built-in width
22 mm
Dimming with push-button
No
Built-in height/depth
33 mm
With movement sensor
No
With light sensor
Yes
Protection class according to IEC 61140
None
Impact strength
IK04
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
0.7 W
With air slots
Yes
Voltage type
AC
Colour of light
White
Colour rendering index CRI
80-89
Rated ambient temperature according to IEC 62722-2-1
-5 - 42 °C
Suitable for lamp power
0.1 - 0.1 W
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
more specifications
