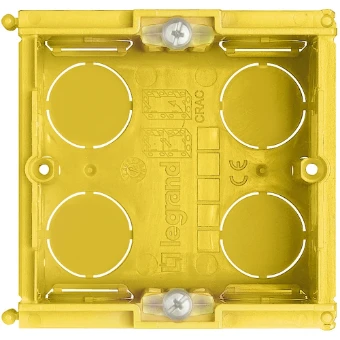

Box/housing for built-in mounting in the wall/ceiling BTIcino
Add to selection
General information
Ordercode YESSS
0382-8393
Product code
502E
EAN code
8012199895222
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
BTIcino
Product description
BOITE ENCASTR. 2 MODULES
Product specifications
Mounting method
Hollow wall
Shape
Square
Provided with revolving ring
No
Air tight
No
Couplable
Yes
With screws
No
Construction type
Device connection box (round/square)
Model
Double
Equipped with
None
Length
71 mm
Depth
53 - 53 mm
Width
71 mm
Inner depth
50 mm
For number of device inserts
2
Mounting switching equipment
Screwing
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
20/25 mm
Housing feed-through by nozzle
Yes
Suitable for cable diameter
16 - 19 mm
Housing feed-through by step membrane
No
Pipe locking
No
Inlet from the rear
Yes
Number of inlets
12
Material
Plastic
Pipe locking optional
No
Halogen free
Yes
Surface protection
Untreated
Colour
Yellow
Number of included spouts
0
Degree of protection (IP)
Other
Cover attachment
Other
Sealable
No
Circuit integrity
None
With screening
No
Degree of protection (NEMA)
Other
Max. conductor cross section
0 mm²
Cover model
None
Number of poles of the clamp
0
Transparent cover
No
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
0
With partition panel
No
