General information

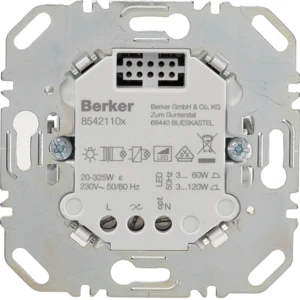

Uni. Tastdim. 1f. (R,L, C,LED)
Uni. Tastdim. 1f. (R,L, C,LED)
Ordercode YESSS
0333-8920
Product code
85421100
Product group
Dimmer
Brand
Berker
Serie
Elektronik-Plattform
Type
85421100
Product description
Universal Tastdimmer 1fach (R,L, C, LED).Universal-Tastdimmer 1-fach, Elektronikplattform, niedriger Eigenenergiebedarf, automatische Einstellung der minimalen Starthelligkeit für 230 V LED- und Energiesparlampen, lampenschonender Softanlauf, Phasenan- oder Phasenabschnitt je nach Lastart, selbstlernend, kurzschlussfest und überlastsicher (elektronische Sicherung), optionale Feineinstellung der Lastart, mit 2 Nebenstelleneingängen für Taster (Schließer), auch geeignet für das Aufstecken passender KNX Funk Aufsätze, keine leitende Verbindung zwischen Tragring und Spreizkrallen, mit Schraubklemmen.
Product specifications
Assembly arrangement
Basic element
Operating method
Push button
Number of modules (module system)
0
Light value memory
No
App control via Bluetooth
No
Dimming phase cut-on (leading edge)
Yes
Serial dimmer
No
Dimming phase cut-off (trailing edge)
Yes
Type of load
Universal
Substation input
Yes
Applicable with button
Yes
Applicable with movement sensor
Yes
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
Yes
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Mounting with claw
Material
Other
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Suitable for degree of protection (IP)
IP20
Transparent
No
Nominal voltage
230 - 230 V
Frequency
50 - 60 Hz
Impact strength
IK02
Device width
71 mm
Device height
71 mm
Device depth
33.2 mm
Connection type
Screwed terminal
Core cross section
1.5 - 2.5 mm²
Min. depth of built-in installation box
35 mm
Nominal power resistive load
20 - 350 W
Nominal power capacitive load
20 - 200 VA
Max. switching power LED
250 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
