LED-lamp/Multi-LED Bailey LED PL
Add to selection
General information
Ordercode YESSS
6025-8206
Product code
80100038775
EAN code
8714681387757
Product group
LED-lamp/Multi-LED
Brand
Bailey
Serie
LED PL
Type
G23 2P
LED PL TC-S G23 2P 6W (11W) 560lm 830 FR
LED PL TC-S G23 2P 6W (11W) 560lm 830 FR EM+AC
Product description

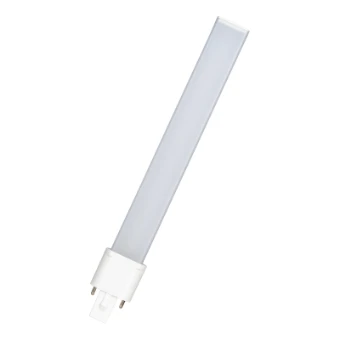

BAI LED PL G23 2-pins TC-S 6W (11W) 3000K Frosted 560lm 230V-240V 130° 30x235mm LED-lamp Alt PLS Dulux S
Product specifications
Nominal current
52 - 52 mA
Socket
G23
Colour temperature
3000 K
Power factor
0.7
Lamp power
6 - 6 W
Energy efficiency class
F
Luminous flux
560 - 560 lm
Dimmable
No
Beam angle
130 °
Lamp efficacy
93 lm/W
Colour rendering index CRI
80-89
Length
235 mm
Luminous flux
520 lm
Filament lamp
No
Average nominal lifespan
20000 h
Colour of light
830 - 830
Beam angle
120 °
Light colour category
Warm
Colour of light
830
Colour temperature
3000 - 3000 K
Colour housing
White
Degree of protection (IP)
IP20
Nominal voltage
220 - 240 V
Colour
White
Colour consistency (McAdam ellipse)
SDCM5
Weighted energy consumption in 1000 hours
6 kWh
Voltage type
AC
With remote control
No
Lamp shape
Tube, single-ended
Type of glass/cover
Frosted
Lamp designation
Other
Diameter
30 mm
Min. number of switching cycles
15000
Colour of light according to EN 12464-1
Warm white <3300 K
Remote operation possible
No
Photobiological safety according to EN 62471
Other
Rated luminous flux according to IEC 62612
560 lm
Beam angle
130 - 130 °
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Geeignet für magnetisches Vorschaltgerät
Yes
Energieeffizienzklasse nach EU-Richtlinie 2019/2015
F
With movement sensor
No
With twilight switch
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimmung Bluetooth
No
Dimmung Wi-Fi
No
