Downlight/spot/floodlight Bailey LED Charge
Add to selection
General information
Ordercode YESSS
6025-9064
Product code
90500034260
EAN code
8714681342602
Product group
Downlight/spot/floodlight
Brand
Bailey
Serie
LED Charge
Type
LED Portable
LED Portable Green DIM 20W 1800lm 4000K
LED Portable Green DIM 20W 1800lm 4000K
Product description

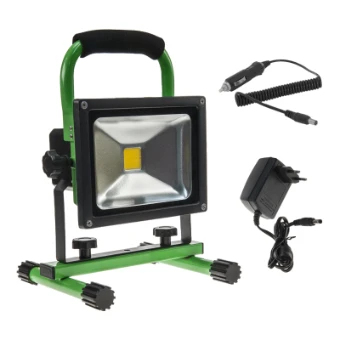

BAI LED Portable 6-20W 4000K Green Dimmable 1800lm IP65 IK07 Alu housing 120D Incl chargers
Product specifications
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
Yes
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Swivelling
With light source
Yes
Colour housing
Green
Suitable for low voltage cable system
No
With light sensor
No
Reflector
Matt
Light sharing
Symmetric
Suitable for number of lamps
1
Lamp holder
None
Type of control gear
Not required
Suitable for lamp power
20 - 20 W
With control gear
Yes
Surface protection
Other
Dimmable
Yes
Max. system power
6 W
Surface brushed
No
Nominal voltage
12 - 12 V
Colour temperature
4000 - 4000 K
Material housing
Aluminium
Surface finishing
Matt
Material cover
Glass transparent
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Grid perforated
No
Dimming DMX
No
Dimming DSI
No
Beam angle
Extreme wide beam >80°
Dimming potentiometer (integrated)
No
Length
293 mm
Dimming GPRS
No
Width
217 mm
Reflector perforated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
185 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Colour of light
Other
Dimming programmable
No
Colour rendering index CRI
70-79
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
III
Dimming Touch and Dim
No
Impact strength
IK07
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
None
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Energy efficiency class of the built-in lamp
Other
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC62722-2-1
-10 - 40 °C
Lamp efficacy
300 lm/W
Type of wiring
Suitable for through wiring
Connection type
Other
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
Other
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
Yes
Exchangeable control gear
No
Dimming DALI-2
No
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Operation by Bluetooth
No
