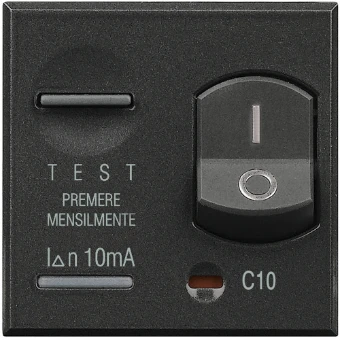

Earth leakage circuit breaker BTIcino
Add to selection
General information
Ordercode YESSS
0383-2927
Product code
HS4305/10
EAN code
8012199746821
Product group
Earth leakage circuit breaker
Brand
BTIcino
Product specifications
Release characteristic
C
Rated current
10 A
Rated fault current
0.01 A
Width in number of modular spacings
45.1
Rated voltage
230 V
Number of poles (total)
1
Number of protected poles
1
Rated short-circuit breaking capacity according to EN 61009
3 kA
Leakage current type
Other
Rated short-circuit breaking capacity Icn according to EN 61009-1
3 kA
Frequency
50/60 Hz
Current limiting class
1
Rated short-circuit breaking capacity according to IEC 60947-2
3 kA
Concurrently switching neutral conductor
Yes
Pollution degree
2
Voltage type
AC
Built-in depth
44.5 mm
Anti-nuisance tripping version
No
Degree of protection (IP)
IP20
Ambient temperature during operating
-5 - 50 °C
Connectable conductor cross section solid-core
2.5 - 2.5 mm²
Product information
