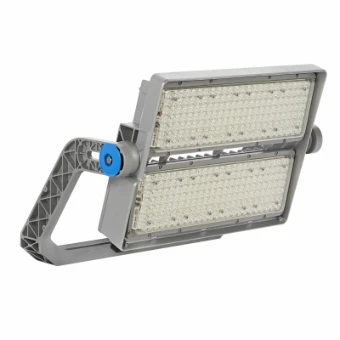

Downlight/spot/floodlight Philips ArenaVision LED Gen 3.5

Add to selection
General information
Ordercode YESSS
6076-0725
Product code
912300024642
EAN code
8719514200845
Product group
Downlight/spot/floodlight
Brand
Philips
Serie
ArenaVision LED Gen 3.5
ARENAVISION LED GEN3.5 SMALL - LED module 130000 lm - ARENAVISION LED GEN3.5 SMALL - LED module 130000 lm - LED - mit DMX Schnittstelle - Symmetrisch - Polycarbonatwanne klar - 2° x 10°
Product description

Das Flutlichtsystem Philips ArenaVision LED ist eine innovative Lösung für die LED-Spielfeldbeleuchtung, die den neuesten TV-Sendestandards gerecht wird. ArenaVision LED wurde exklusiv für Sport- und Mehrzweckhallen entwickelt und bietet eine hervorragende Lichtqualität, effektives Wärmemanagement und eine lange Nutzlebensdauer. ArenaVision LED vereinfacht in Kombination mit Lichtregelungen wie dem InteractSports-Lichtmanagementsystem die Bereitstellung der richtigen Beleuchtung durch Zeitplanung. Anpassungen in Echtzeit können einfacher erfolgen. Außerdem ist es möglich, vor, während und nach dem Hauptereignis individuelle Lichtshows zu erstellen. Um eine optimale Nutzung für Anwendungen im Innen- wie im Außenbereich zu gewährleisten, umfasst das Scheinwerfer-Sortiment zwei Ausführungen mit einem Gehäuse aus Aluminiumdruckguss, die jeweils zwei oder drei LED-Module beinhalten. Diese Versionen funktionieren außerdem mit einer externen Treibereinheit – für separate Nutzung mit Abstand zum Scheinwerfer (BV) oder vormontiert auf dem Montagebügel des Scheinwerfers (HGB). Die externe Treibereinheit ist einfach zu installieren und sorgt dafür, dass Anfangskosten geringer ausfallen.

Product specifications
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for suspended mounting
Yes
Lamp type
Other
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Rotatable
With light source
Yes
Housing colour
Aluminium
Suitable for low voltage cable system
No
With light sensor
No
Reflector
None
Light distribution
Symmetric
Suitable for number of light sources
3
Lamp holder
None
Type of control gear
LED operating device current-controlled
Suitable for lamp power
1000 - 1000 W
With control gear
Yes
Surface protection
Powder coating
Max. system power
1000 W
Surface brushed
No
Nominal voltage
230 - 400 V
Colour temperature
5700 - 5701 K
Housing material
Aluminium
Material cover
Plastic, transparent
Dimming depending on control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
Yes
Dimming DSI
No
Beam angle
5-10° - Extreme narrow beam
Dimming potentiometer (integrated)
No
Length
695 mm
Dimming GPRS
No
Width
695 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
445 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
Refractor lens
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated ambient temperature according to IEC 62722-2-1
-40 - 45 °C
Power factor
0.9
Type of wiring
Suitable for loop-through wiring
Number of poles
1
Conductor cross section
15 mm²
Connectable conductor cross section
14 - 16 mm²
Connection type
Crimping
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM5
Suitable for wall mounting
Yes
Exchangeable control gear
Yes
Dimming DALI-2
No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
80 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
10 %
Constant light output (CLO)
No
Flickering value Pst LM
0
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Stroboscope effect value SVM
0
Max. number of luminaires per miniature circuit breaker B16 (MCB)
2
Max. number of luminaires per miniature circuit breaker C16 (MCB)
3
IFTTT support available
No
Unified Glare Ratio (UGR)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
more specifications
